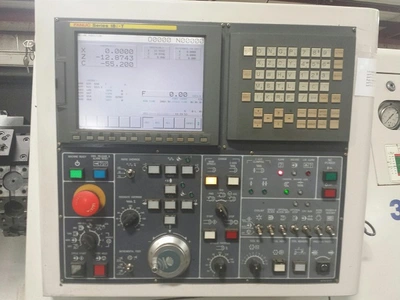

Control: Fanuc 18iT
Swing Over Bed: 21.65"
Swing Over Cross: 15.40"
Max Turn Diameter: 11.4"
Max Turn Lenght: 18.8"
Spindle Speeds: 35-3,500 RPM
Spindle Bore: 4.1"
Spindle Bar Capacity: 3.5"
Spindle Nose: A2-8
Spindle Motor: 20 HP
Number of Turret Stations: 12
Number of Live Stations: 5
Live Tools Rotary Speeds: 60-6,000 RPM
Live Tools Rotary Motor: 5 HP
Tailstock Quill Taper: MT4
Machine Dimensions: 129.9"L x 74.9"W x 84.7"
Machine Weight: 18,700 LBS
12" 3-Jaw Hydraulic Chuck
Chip Conveyor
Tool Pre-Setter
Live Holders
Parts Catcher
