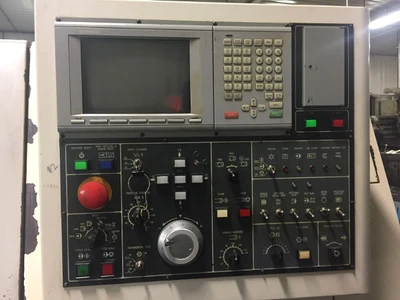

Control: Mitsubishi Meldas 520
Swing Over Bed: 20"
Swing Over Cross Slide: 13"
Distance Between Centers: 21.6"
Bar Capacity: 1.75"
Max Turn Diameter: 13.8"
Max Turn Length: 15.7"
X Axis Travel: 9.5"
Z Axis Travel: 17.3"
Spindle Motor: 15 HP
Spindle Nose: A2-5
Spindle Speed: 6,000 RPM
Number of Turret Stations: 12
Machine Dimensions: 105"L x 65"W x 70"H
Machine Weight: 9,900 Lbs
SMW Space Saver 2000 Bar Feeder
Parts Catcher
