Max Swing Over Bed: 17.1"
Max Work Piece Diameter: 9.1"
Max Turning Length: 15"
X Axis Travel: 4.9"
Z Axis Travel: 15"
Spindle Nose: A2-5
Spindle Bore: 1.5"
Spindle Speeds: 60 - 6,000 RPM
Turret Capacity: 12 Position
Machine Dimensions: 91" x 59" x 64"
Machine Weight: 8,140 LBS

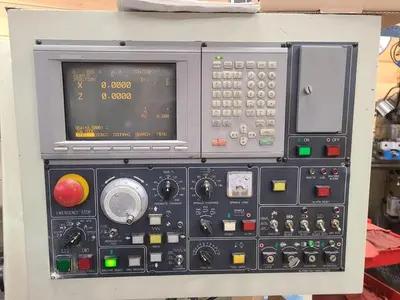

Mitsubishi Meldas 500 CNC Control
Tailstock
Chip Conveyor
16C Collet Chuck
Tool Presetter
Parts Catcher
