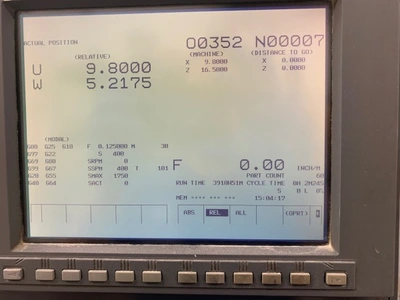

Control: Fanuc 21i-T
Max Turning Diameter: 11.02â³
Max Turning Length: 19.68â³
Max Bar Capacity: 2.59â³
Swing Over Bed: 18.11â³
Swing Over Carriage: 13.7â³
Distance Between Centers: 24.8â³
X Axis Travel: 6.53â³
Z Axis Travel: 20.86â³
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 3.05â³
Spindle Speed: 0 â 4500 RPM
Spindle Motor: 20 HP

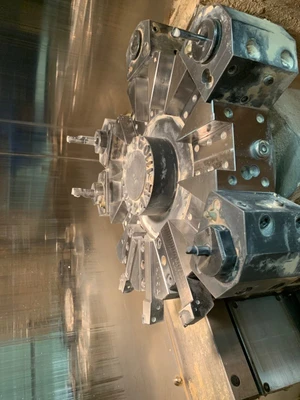

Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Presetter

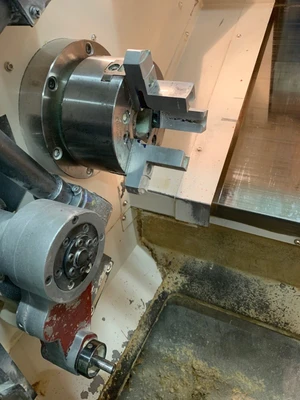

10" 3-Jaw Chuck
Parts Catcher
