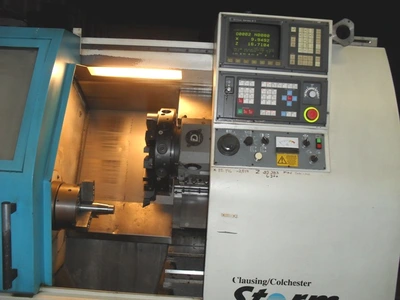

Control: Fanuc 0T
Swing: 20.86"
Maximum Machining Diameter: 9.8"
Distance Between Centers: 15.74"
Spindle Speeds: 5,000 RPM
Main Motor: 25 HP
Spindle Nose: A2-6
Number Of Turret Positions: 12
Chuck Diameter: 8.26"
Number of Jaws: 3
Bar Capacity: 2.610"
Talstock Taper: MT#5
Rapids: X-394 IPM, Z-787 IPM
Z-Axis Travel: 15.74"
Machine Weight: 7,600 LBS
Programmable Tailstock

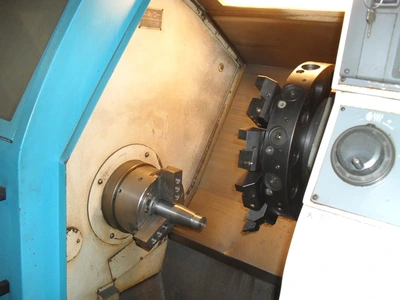

8.26" 3-Jaw Chuck
Coolant Sytem
Acu-Stop for Spindle Bore

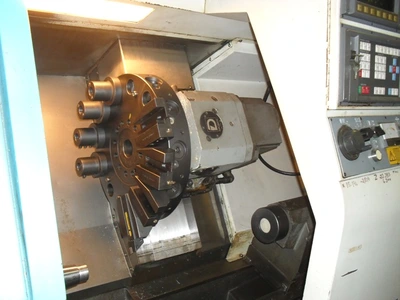

12-Position Duplimatic VDI 40 Turret
Approx. (8) Tool Holders
Chip Tray
Books & Manuals
*New Z-Axis Thrust Bearing*
**Ran Mostly Steel Alloy, Alloy Bronze & Stainless**
