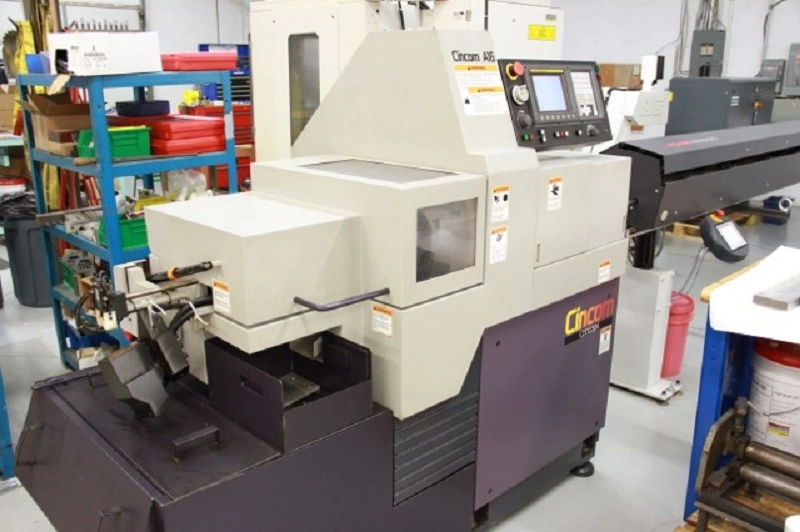

Control: Fanuc 0i-TB
Max. Machining Diameter: .63"
Max. Machining Length, w/Rotary Guide Bushing Device: 5.31"/2.24"
Max. Front Drilling Diameter: .24"
Max. Front Tapping Size (w/tap & die): M6
Spindle Through-hole Diameter: .79"
Max. Spindle Speed: 10,000 RPM
w/Rotary Guide Bushing Device: 6,000 RPM
Max. Drilling Diameter: .2"
Rotary Spindle Speed: 4,500 RPM
Max. Chuck Diameter Back Spindle: .63"
Max. Workpiece Length, Front Side from Back Spindle: 3.15"
Max. Tapping Diameter, in Back Machining Process: M3
Back Spindle Speed: 6,000 RPM
# of Tools to be Mounted: 16
Turning Tools on Gang Tool Post: 5
Rotary Tools on Gang Tool Post: 3
Tools for Front Spindle: 4
Tools for Back Spindle: 4
Gang Tool Post (tool): .39"
Main Spindle: 2.2/3.7 KW
Center Height: 39.37"
Long Part Option
Live Tool Option

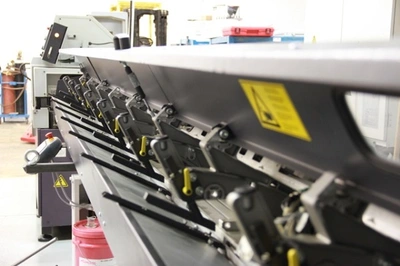

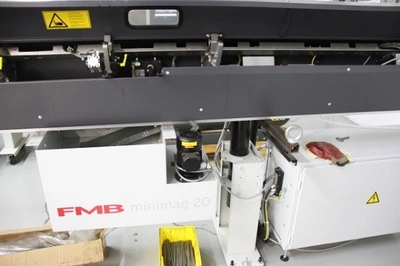

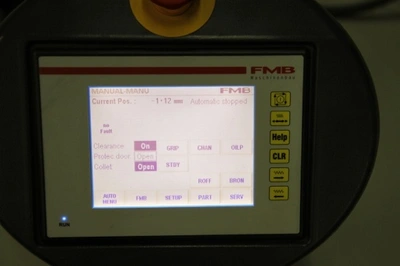

FMB Minimag 20 (new 2013)

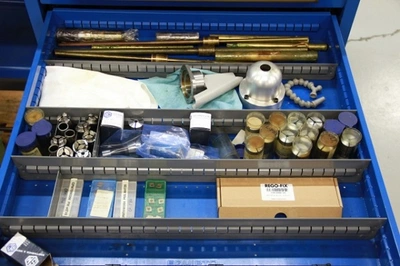

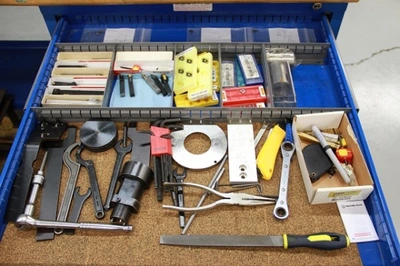

Extra Misc Tools
