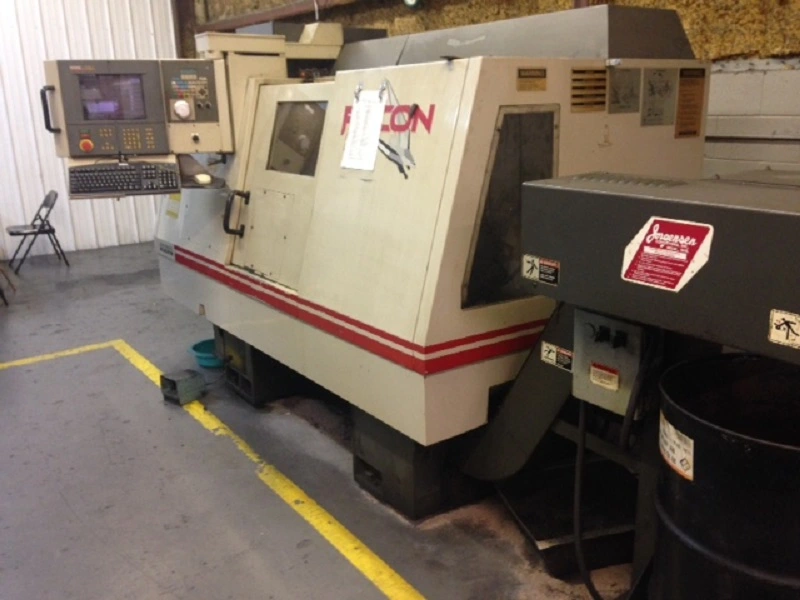

USED 1996 CINCINNATI MILACRON

Control: Acramatic 2100
Max Swing Over Bed: 20.86"
Max Swing Over Carriage: 9.84"
Max Tailstock Position: 17.5"
Max Machinable Center Distance: 16.53"
Standard Chuck Size: 8.25"
Cross Travel (X-Axis): 8.45"
Longitudinal Travel (Z-Axis): 16.53"
Number of Turret Positions: 12
Spindle Bore: 2"
Spindle Nose: A2-6
Spindle Speed: 40-4500 RPM
Spindle Motor: 15 HP
Machine Dimensions: 109"L x 55"W x 77"H
Machine Weight: 6,600 LBS

Chip Conveyor

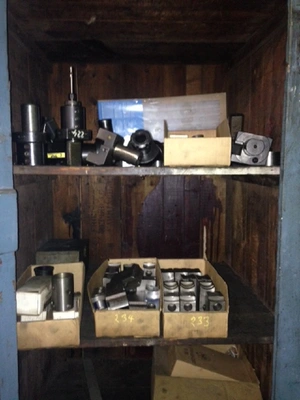

Extra Misc Tooling
