USED LOUISVILLE Steam Powered

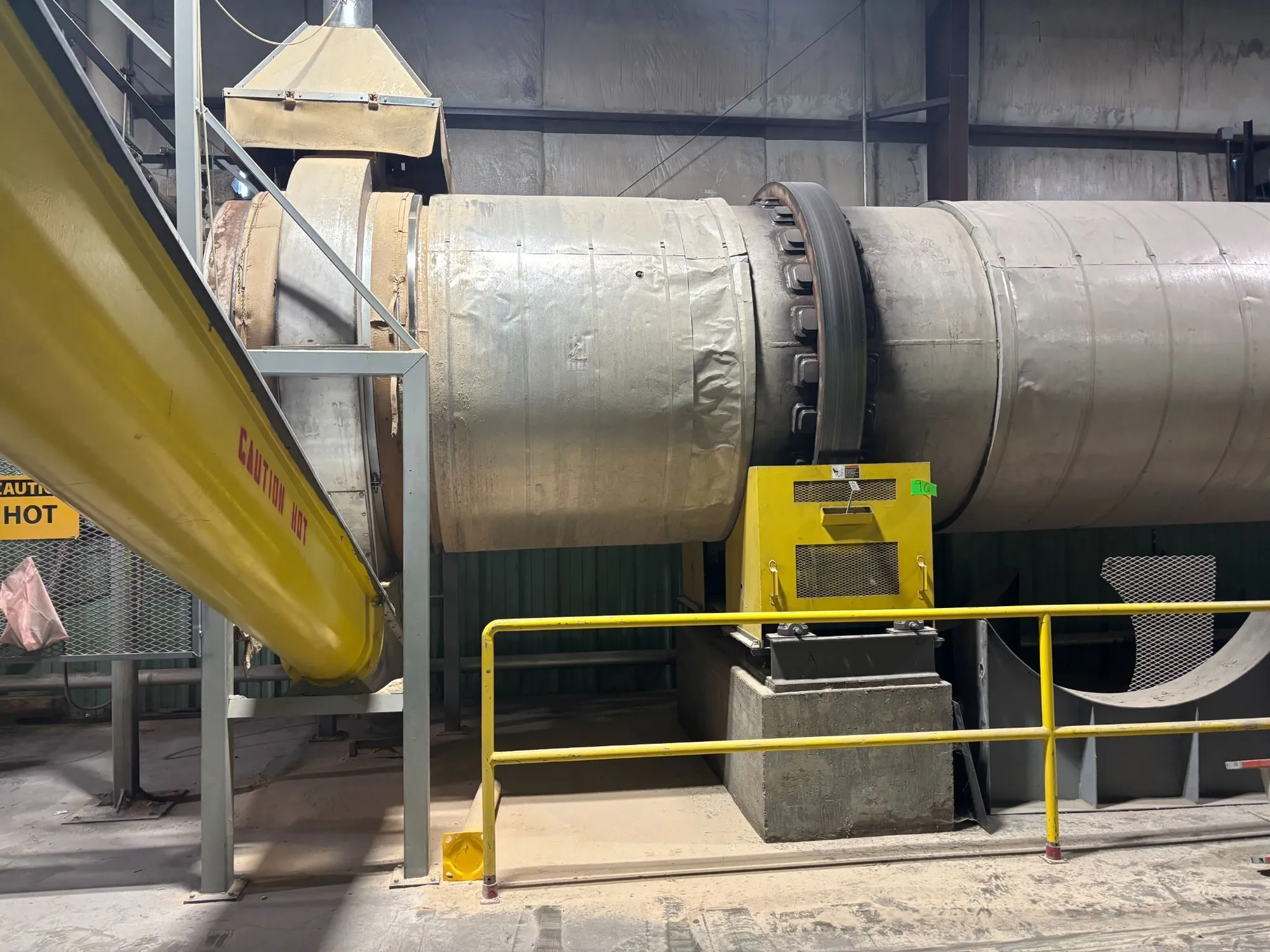

Used Louisville rotary steam tube dryer – 45 ft (13.7 m) × 72 in (1,830 mm), Steam Tube Type

Internal dryer dimensions: 45 ft long × 72 in diameter (13.7 m × 1,830 mm)
Maximum steam pressure: 150 psi (≈10.3 bar)

Reported operating performance:
~9,000 lb/hr (≈4,080 kg/hr) of wood flour at 30 psi steam (≈2.1 bar)
Moisture reduced from approximately 3–5% down to ~0.5%

Heavy-duty industrial rotary tumble dryer manufactured by Louisville Dryer Company (LDC), designed with internal steam tubes for indirect, controlled drying without direct combustion. For continuous operation in biomass, wood products, chemical, mineral, and specialty powder applications.
