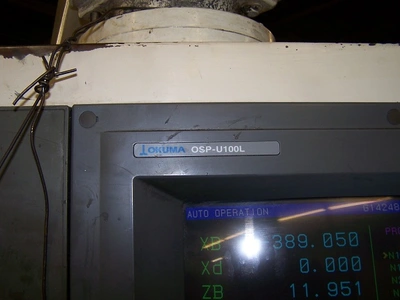

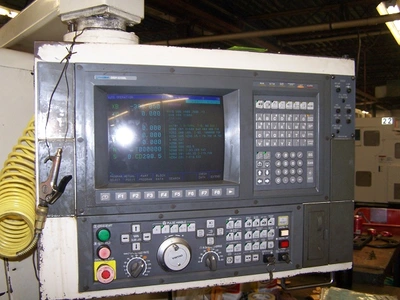

Control: OSP-U100L
Chuck Size: 8"
Swing over Bed: 20.87"
Swing over Carriage: 14.96"
Swing over Crosslide: 12.99"
Maximum Cutting Diameter: 14.17"
Maximum Turning Length: 23.62"
Spindle Nose: A2-8
Spindle Bore: 2.44
Spindle Speed Range: 75 - 4500 rpm
Spindle Motor: 30 HP

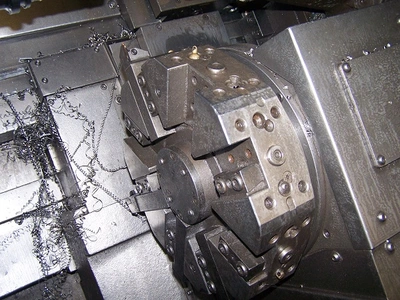

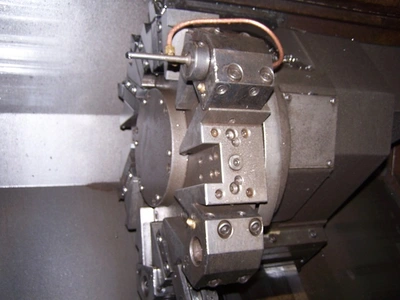

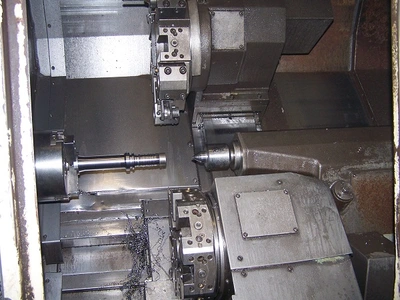

Turret Type: Twin Turret -v12 +v8
Turret Positions: 12 + 8
Machine Size: 160" x 82" x 76"H
Machine Weight: 14,500 lbs

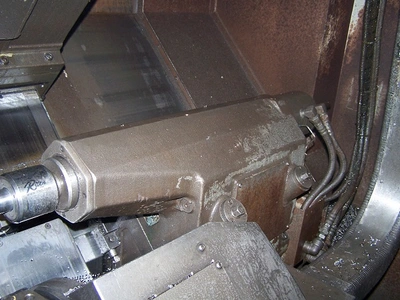

Tailstock

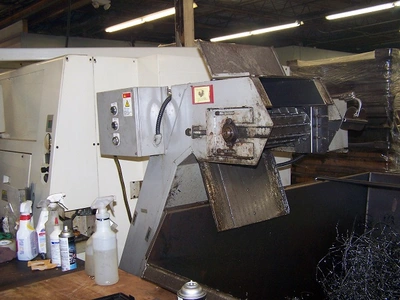

Chip Conveyor
