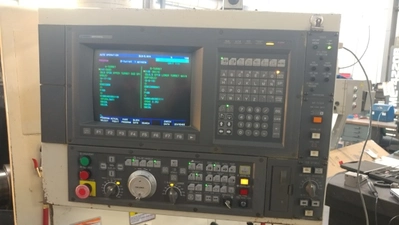

Control: OSP7000L
Max Swing Over Slant Bed: 22"
Max Turning Diameter: 14.17"
Max Machinable Center Distance: 23.62"
Cross Travel (X-Axis) Upper Slide Above Center: 11.6"
Lower Slide Below Center: 7.6"
Longitudinal Travel (Z-Axis) Upper Slide: 29.6"
Lower Slide: 21.4"
Feed Range X & Y-Axis (Infinetly Variable): 400 IPM
Rapid Traverse Rate X & Y Axis: 400 IPM
Tool Positions (12-Upper & 8-Lower): 20 Total
Barcapacity: 2.75"
Spindle Speed Range: 4,500 RPM
Spindle Horsepower: 30 HP
Approximate Machine Dimensions: 189" x 78"
Approximate Machine Height: 79"
Approximate Machine Weight: 24,000 LBS
Chucks for Main and Sub-Spindle
Chip Conveyor
Sub-Spindle
'05 Chip Blaster (Mist Blaster)
Chuck Jaws
