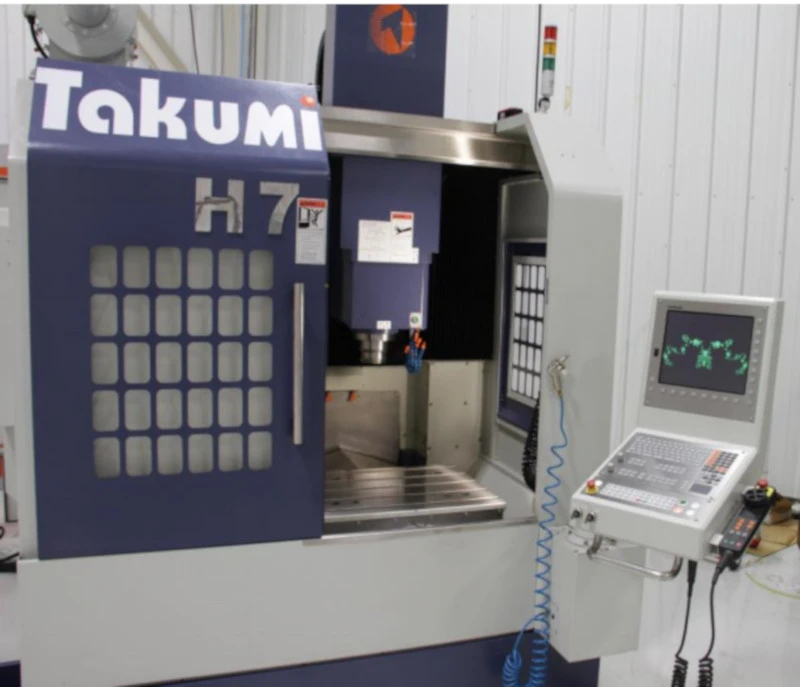

USED 2018 TAKUMI H7
Overview
Specs

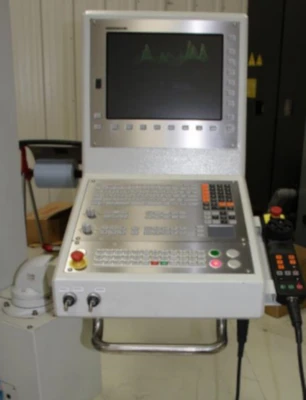

Control: Heidenhain TNC640
X Axis Travel: 29.5"
Y Axis Travel: 23.6"
Z Axis Travel: 19.7"
Table Size: 31.8" x 24.4"
Table Max Load: 1,100 LBS
Spindle Speeds: 36,000 RPM
Spindle Motor: 32 HP
Spindle Taper: HSK E50
Tool Changer Capacity: 24 ATC
Machine Footprint: 130â x 169.3â
Machine Weight: 15,400 LBS
Equipped With

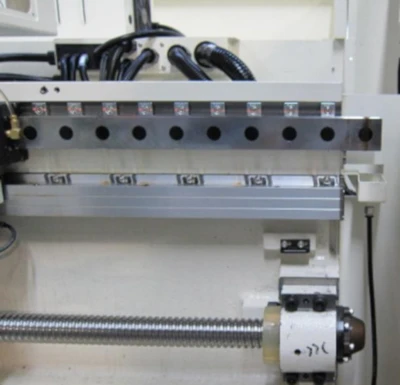

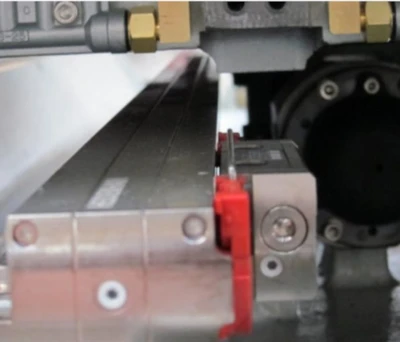

Linear Scales X, Y, and Z Axis
Air Dryer for IBAG Spindle
Renishaw NC4 laser tool probe
79 Gallon Coolant Tank
Cutting air/oil mist
Flood Coolant
Oil Skimmer
Integrated coolant washdown system

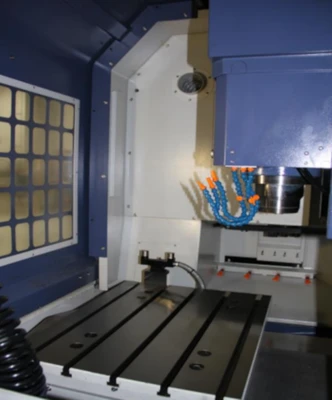

Full Chip Enclosure
Spindle Thermal Water Type Chiller
Mist Collector
Air Conditioner for Electrical Cabinet
Coolant gun and air gun
***DEMO MACHINE - NEVER CUT A CHIP !***
