Used

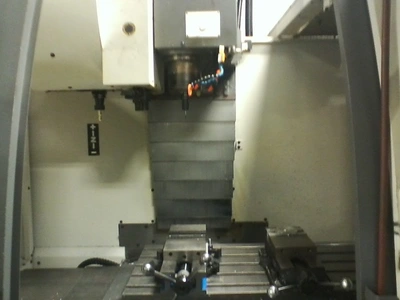

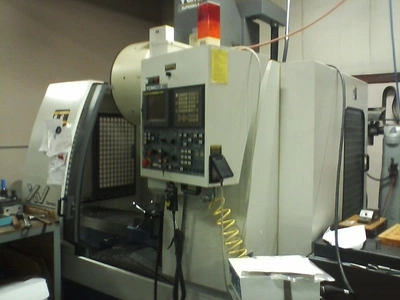

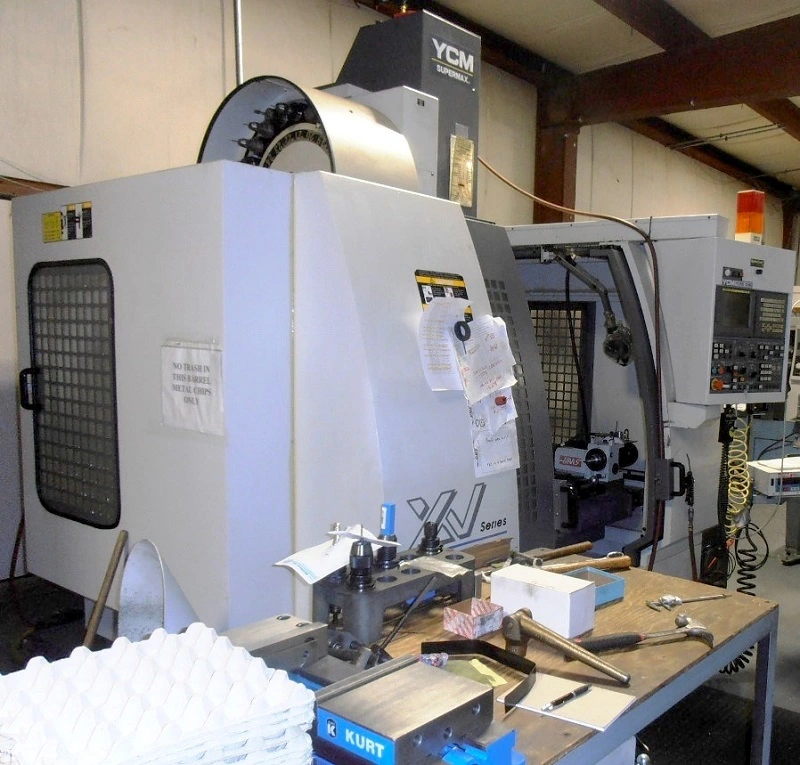

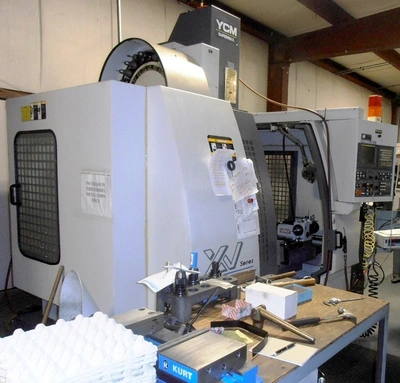

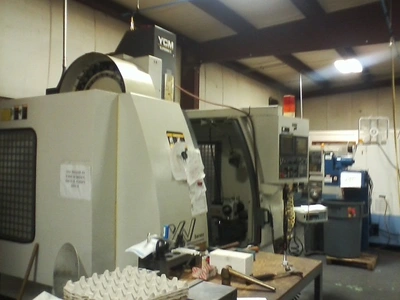

USED 2003 SUPERMAX YCM
Overview
Specs

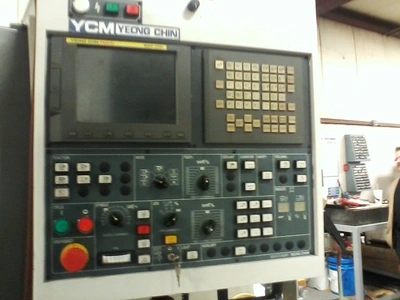

Control: Fanuc MXP-100i
X Axis Travel: 40.2"
Y Axis Travel: 20.5"
Z Axis Travel: 21.3"
Table Size: 20.5" x 44"
Table Load: 1,100 LBS
Spindle Taper: BT 40
Spindle Speed: 10,000 RPM
Spindle Motor: 15 HP
Tool Capacity: 24 ATC
Machine Dimensions: 102"W x 117"L x 98"H
Machine Weight: 11,800 LBS
Equipped With
Haas HA5C CNC Rotary Indexer
Chip Conveyor
Hand Held Pendant Controller
Coolant Through Spindle
