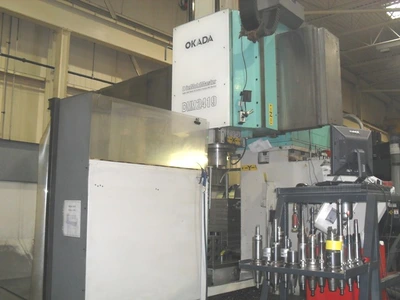

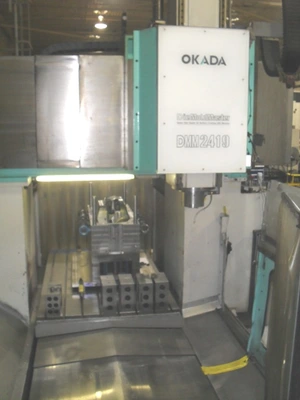

USED 1997 OKADA DMM
Specs
CONTROL TYPE: FANUC 160iM
TABLE SIZE: 92.5" X 63"
TABLE CAPACITY: 37,500 LBS
LONGITUDINAL TRAVEL (X): 98"
CROSS TRAVEL (Y): 71"
VERTICAL RAM SPINDLE TRAVEL (Z): 33.5"
MIN. TABLE TO SPINDLE FACE: 17"
MAX. TABLE TO SPINDLE FACE: 53"
SPINDLE SPEEDS: 20-8000 RPM
SPINDLE DRIVE: 30 HP
SPINDLE TAPER: BT #50
NO. OF TOOLS: 16 ATC
DISTANCE BETWEEN COLUMNS: 73"
MAX. UNDER CROSS RAIL TO TABLE: 59"
MAXIMUM FEED RATE: 276 IPM
DIMESIONS: 300" LONG x 240" WIDE x 208" HIGH
Equipped With

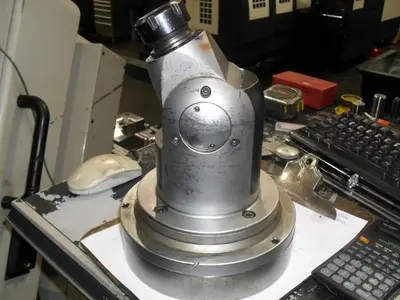

GERADI INDEXING PICKING HEAD
T-SLOTTED TABLE
ELECTRICS-220/440
SERVO DRIVEN TOOL CHANGER

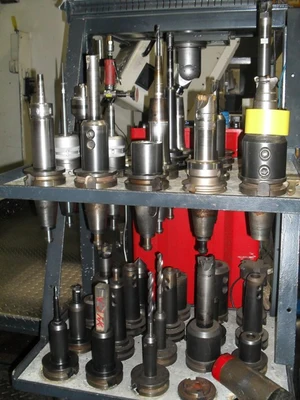

MISC. #BT 50 TOOL HOLDERS
BOX WAYS
TAPPING FUNCTION
