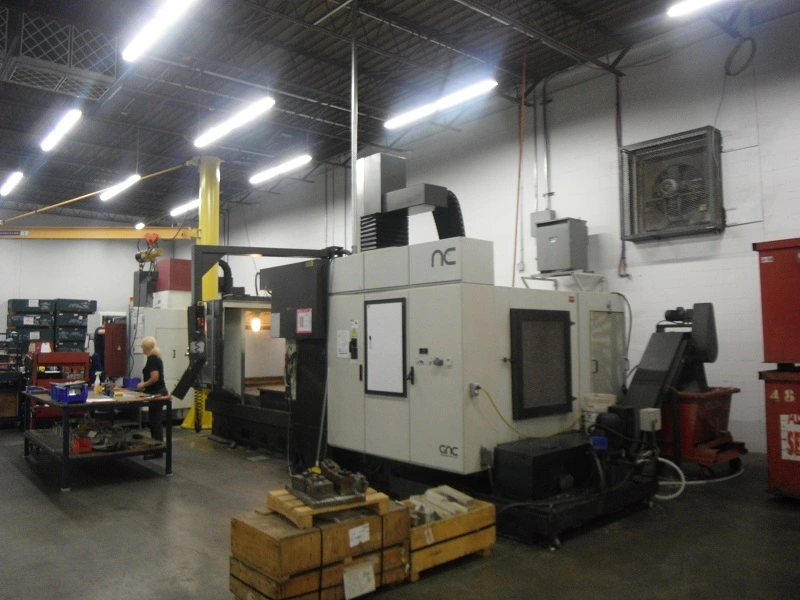

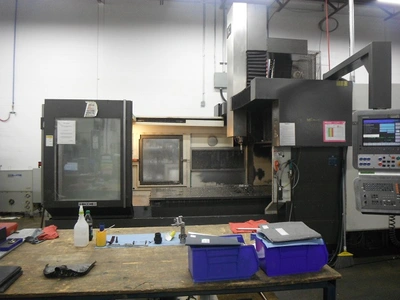

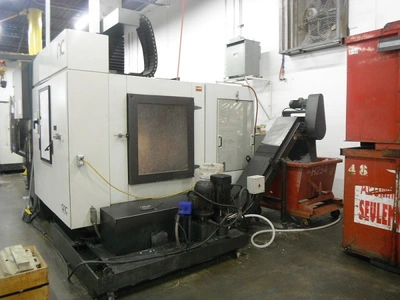

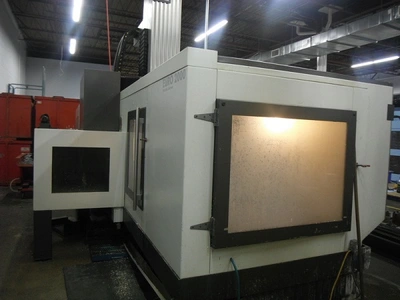

USED 2006 NICOLAS CORREA
Specs

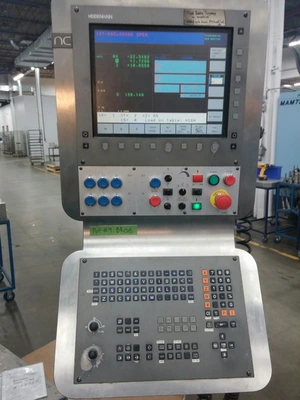

Control: Heidehain iTNC 530
X axis travel: 78"
Y axis travel: 49"
Z axis travel: 26"
Distance between columns: 14"
Table size: (Sub-plate included): 90.75" x 44" x 1.75"
Table Load Max: 5,500 LBS
Spindle Taper: HSK63
Spindle Speeds: 18,000 RPM
Tool Changer Capacity: 24 ATC
Equipped With
New Siemens drives x 2 (2014)
New Heidenhain hard drive
New motor for fan (air condition unit)
New Bearings for the doors

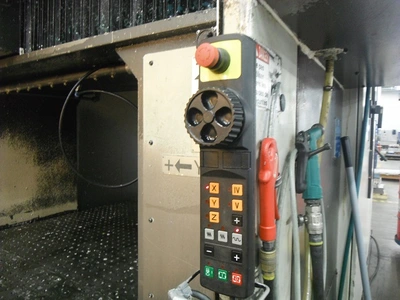

Dead man's switch, for safety compliance

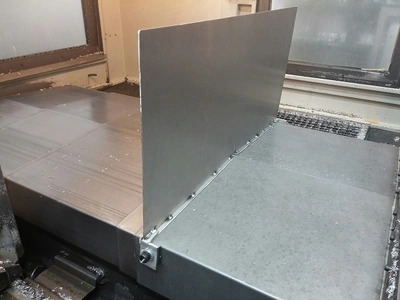

New X axis guards
Spindle repair
New ball screw x axis
New bearings for ball screw
Interior lighting upgraded to DEL
Addition of oil mist collector
Upgrade to coolant tank
$50,000.00 of upgrades and repairs since 2014
Mist Tool holders
Sub plate
Spare Kesler spindle (Needs rebuilding)
Power transformer (575V)
Machine manuals
*Machine is in perfect condition*
