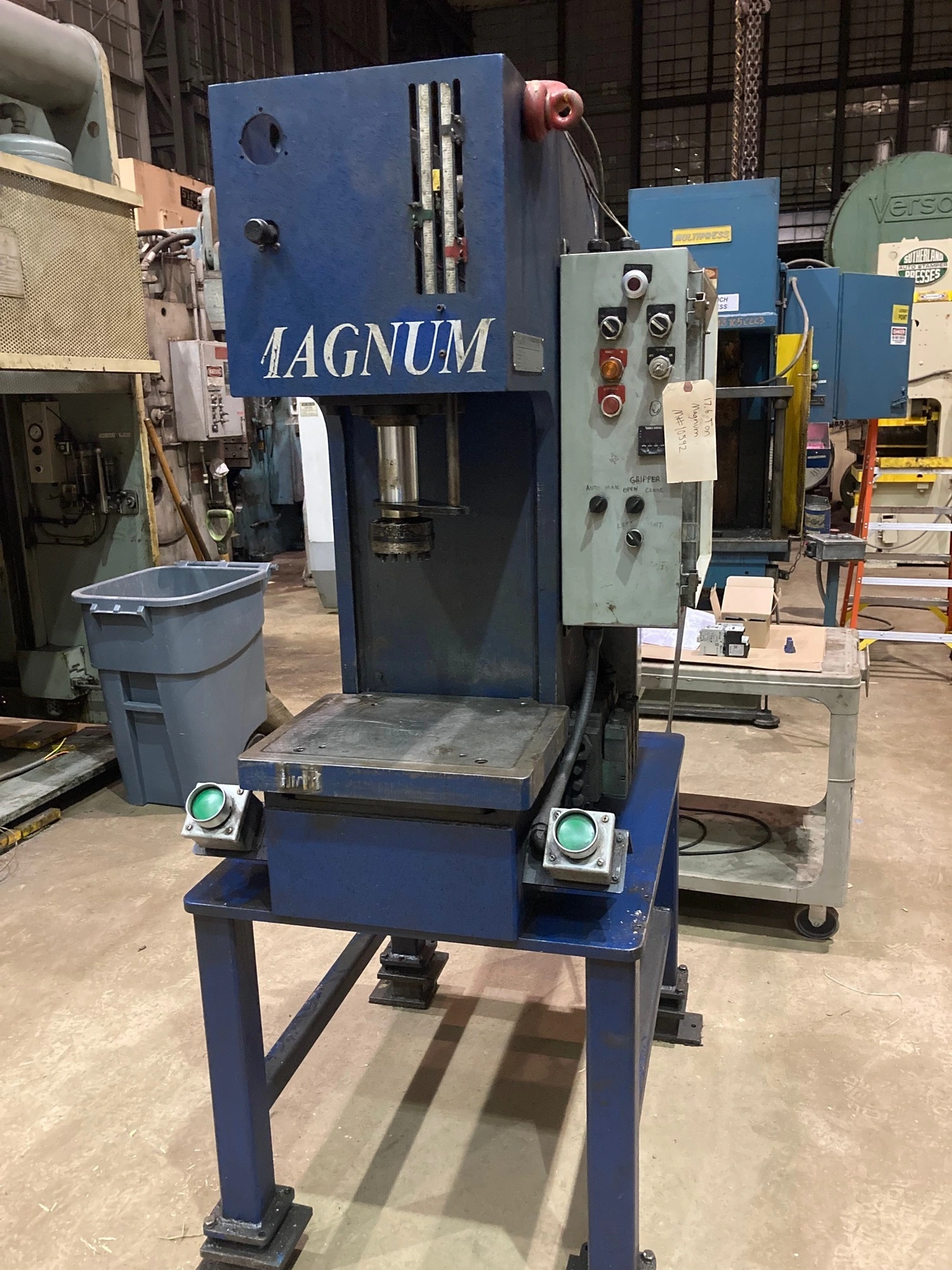

USED 1998 MAGNUM HBM-15-A
Overview
Description
Used 17.6 Ton Magnum C-Frame Hydraulic Press, model HBM-15-A, from 1998. Features a bed size of 18" L-R x 14" F-B, 8" stroke, 16" max daylight, and 2500 PSI rated pressure. Powered by 7.5 HP motor. Dimensions: 4’ x 4’ x 6’, weight: 3,250 lbs.
Specifications
| Ton | 17.6 T | |
|---|---|---|
| Bed L-R | 18 in | |
| Bed F-B | 14 in | |
| Stroke | 8 in | |
| Daylight Opening | 16 in |
Stroke Range: 0.5” - 8”
Rod Diameter: 2.50”
Cylinder Rod End: SAFE Coupler
Rated Pressure: 2500 PSI (3000 PSI Maximum)
Rated Tonnage: 17.6 Ton
Minimum Shut Height: 8”
Maximum Daylight: 16”
Throat: 8”
Bed Size: 18” L-R x 14” F-B
Reservoir Capacity: 20 Gallons (Approximately)
Speeds: 220 IPM Rapid Advance / 90 IPM Pressing / 140 IPM Return
Electrical
Supplied Wired Voltage: 230 VAC Poly Phase
Motor Voltages: 200-230/460
Motor 7 1/2 HP
Approximate Dimensions: 4’ L-R x 4’ F-B x 6’ High
Approximate Weight: 3,250 lbs
