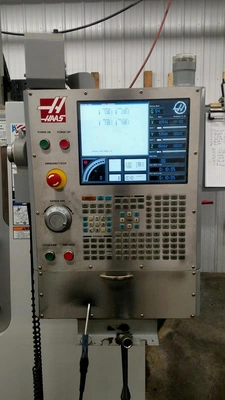

Control: Haas
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Table Size: 36" x 14"
Maximum Table Load: 3,000 LBS
Spindle Speeds: 7,500 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Tool Changer Capacity: 24 ATC
Machine Dimensions: 93"L x 88"W x 106"H
Machine Weight: 8,500 LBS
Chip Auger
Programmable Coolant Nozzle
Coord Rotation & Scaling
Intuitive programming
4AXBL
Remote Jog Handle
User Definable Macros
Side Mount Tool Changer
High Speed Machining Option
VQCPS - Probe w/Training
Floppy Disc Drive
Servo Time 18374:08:27
Motion time 6262:47:34
Spindle on time 6501:48:33
