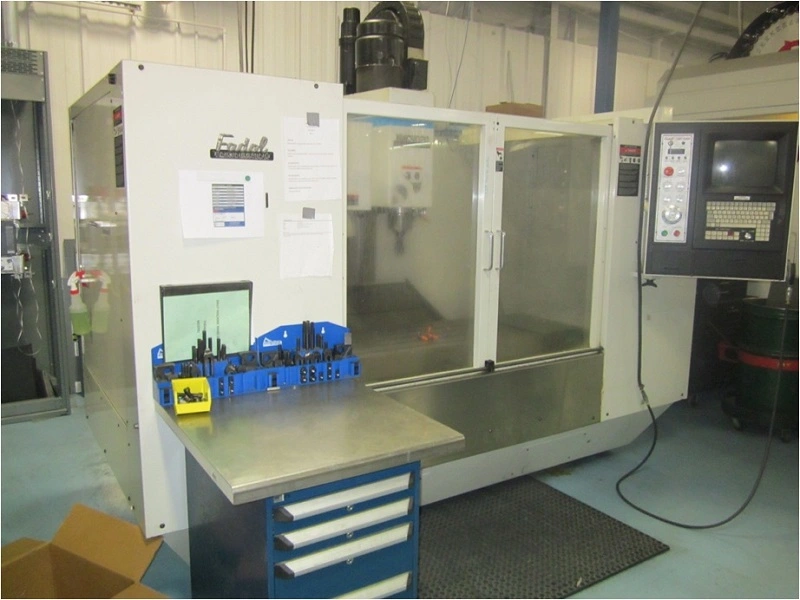

USED 1996 FADAL VMC

Control: Fadal 88HS
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 20"
Table Size: 47.94" x 20"
Table Load Capacity: 1500 lbs.
Spindle Speed: 75 - 10,000 RPM
Spindle Taper: 40
Spindle Nose to Table Top: 4" - 24"
Spindle Torque: 160 ft. lbs.
Spindle Motor: 15 HP
Number of Tools: 21 ATC
Rapid Traverse Rates (X & Y / Z): 700 / 600 IPM
Max Tool Diameter: 3" / 6"
Max Tool Length: 15"
Max Tool Weight: 15 lbs.
Machine Dimensions (L x W x H): 116" x 87" x 95"
Machine Weight 10,100 lbs.

4th Axis Pre Wire
