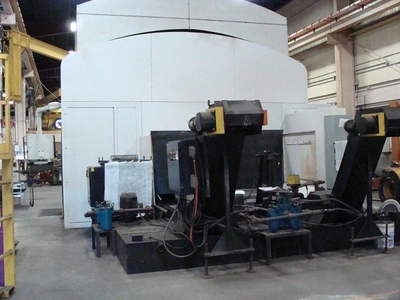

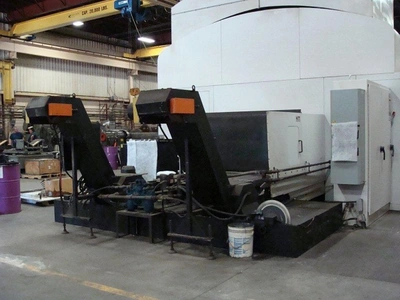

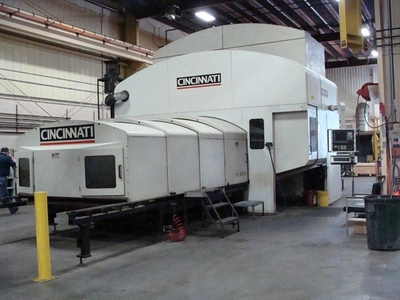

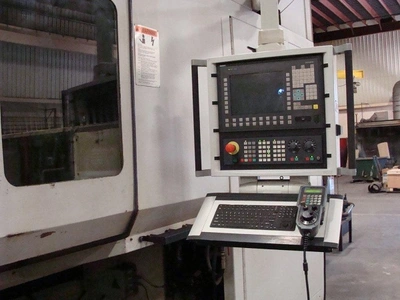

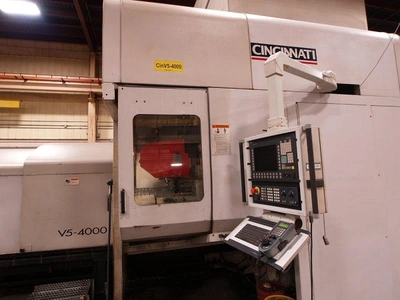

USED 2001 CINCINNATI V5-4000
Specs

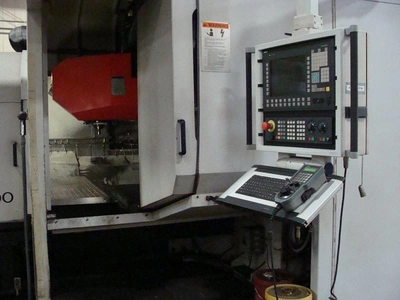

Control: Siemens 840D
X Axis Travel: 157.5"
Y Axis Travel: 98.4"
Z Axis Travel: 29.5"

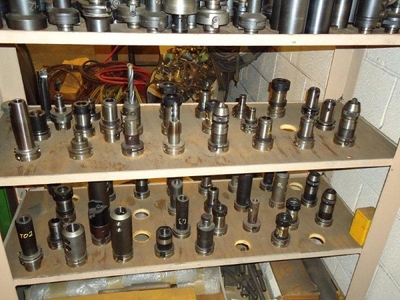

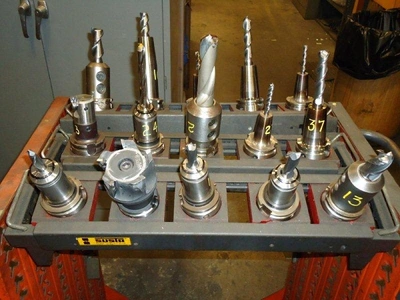

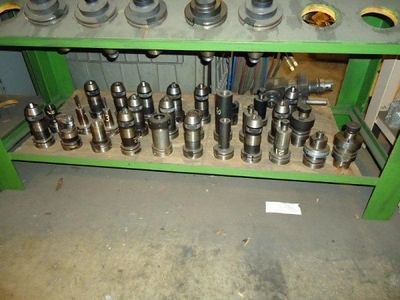

Spindle Taper: HSK-63A
Spindle Speed: 24,000 RPM
Spindle Motor: 40 HP
Tool Changer: 80 ATC
Electrics: 460V/3PH/60Hz
Equipped With
Full 5 Axis Machining Center
40 Deg. A-(Side-to-side) and B-(forward and back) axes
+ 60 Millionths Of An Inch Repeatability
5 Axis Vector Probing
24,000 R.P.M. Ceramic Spindle
Spline Interpolation
Polynomial Interpolation
Coolant Thru Spindle
Spindle Probe (MP7 HSK-63A)
Digital Linear Scales (X, Y, Z)
