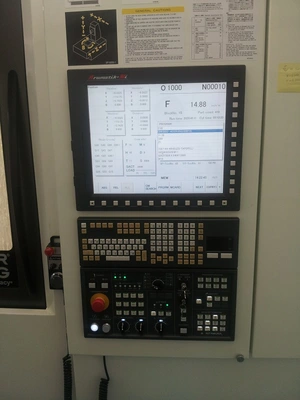

Control: Arumatik-Mi
Table Size: 10 x 10
X Axis Travel: 12"
Y Axis Travel: 12"
Z Axis Travel: 13"
Spindle Taper: NST No. 30
Spindle Speed: 150 ~ 15,000 rpm
Tool Storage Capacity: 40 Pcs.
Tool Change Time (T-T/C-C): 1.2 Sec. /3.0 Sec.
Rapid Feed (X, Y, and Z x B): 1,890ipm (48m/min) x 12,000deg./min.
Power Requirement: 30KVA
Ideal for simultaneous 4-axis machining of small parts
Amazingly small footprint saves on valuable floor space
Positioning Accuracy: ±0.000078 Full Stroke, Repeatability: ±0.000039
Standard full 4th axis rotary table for multi-part tombstone fixturing
Rigid Meehanite cast iron construction
Exceptional chip evacuation with scraper type conveyor & rolling filter
Powerful 15,000rpm, dual contact spindle
