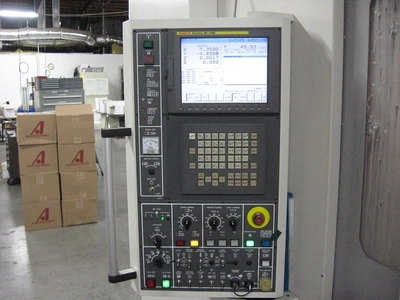

Control: Fanuc 18iMB
X-Axis Travel: 23.6"
Y-Axis Travel: 22"
Z-Axis Travel: 23.6"

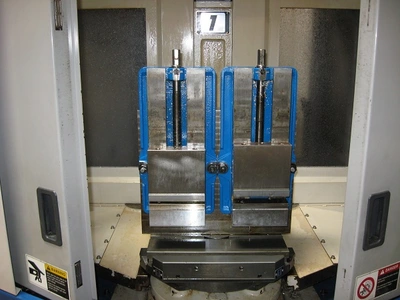

Pallets, Number of: 2
Pallets Size: 15.75" x 15.75"
Pallets Load: 880 LBS
Pallets Index: 360,000°
Spindle Speeds: 140 - 14,000 RPM
Spindle Taper: 40
Spindle Motor: 30 HP

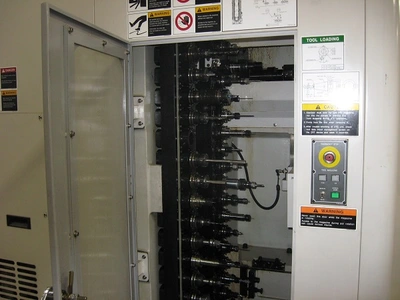

Tool Changer Positions: 60 ATC
Machine Dimensions: 230"L x 140"W x 115"H
Machine Weight: 32,500 LBS
Spindle Air Blow
Coolant Through Spindle (230 psi), Prepped For 1,000 psi
Spindle Coolers
Spindle Orientation
Big Plus Dual Contact Spindle Taper
Remote Jog Handle
Flood Coolant
Dual Augers Conveyors
Rigid Tapping
Laser Tool Setter
Turbo Chip Conveyor
High Precision Direct Drive Spindle
Table Clamping
Large Linear Guides
