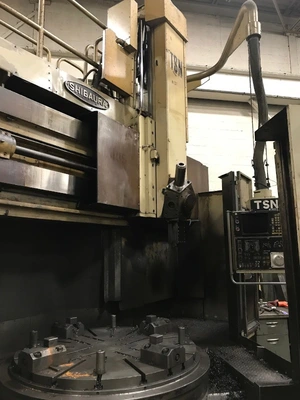

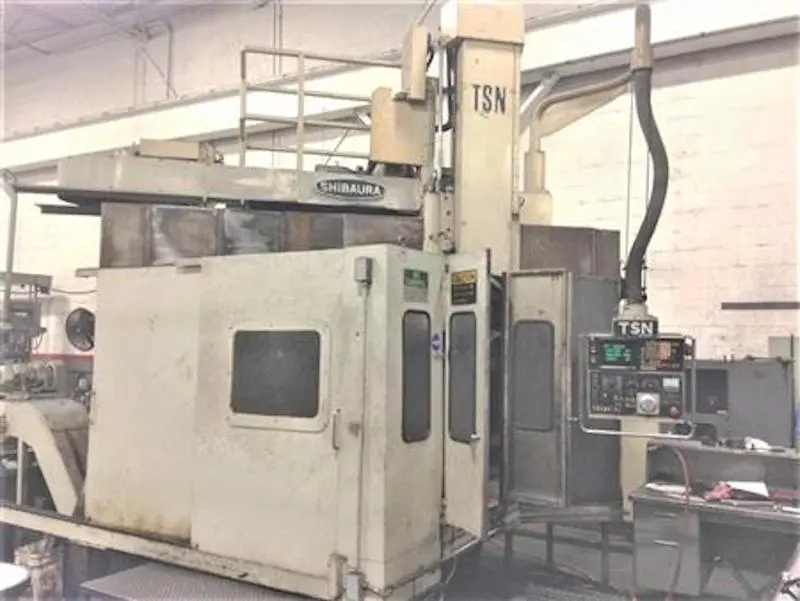

USED 1981 TOSHIBA TSN-13A

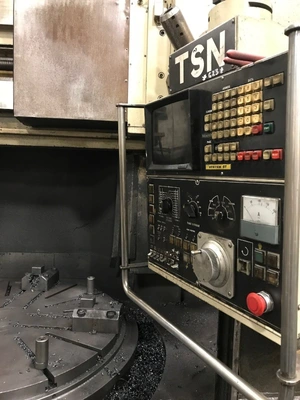

Control: Fanuc 6T

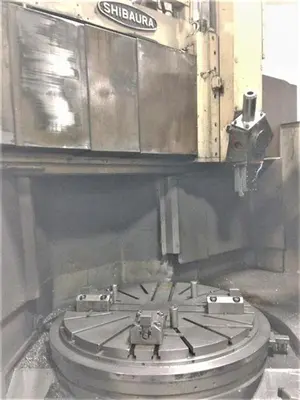

Table Diameter: 49.2" 4 Jaw
Maximum Load on Table: 22,000 lbs
Maximum Torque of Table: 12,900 ft lbs
Maximum Swing: 63"
Maximum Height Under RAM Face: 49.2"
X Axis RAM Head Travel - Horizontal: 3.94" to 41.3"
Z Axis Travel of RAM: 39.4"
Vertical Travel of Cross Rail: 19.7"
Table Speeds (2 ranges): 4 to 200 RPM & 5 to 250 RPM
Table Motor 30 minutes / Continuous: 60 HP / 40 HP
Number of Turret Positions: 5 Sided Turret
Rapid Traverse of Railhead: 248 IPM
Cross Rail Positioning: 16.1 IPM
Floor Space Required: 276"x189"x193"
Machine Weight: 37,400 lbs
