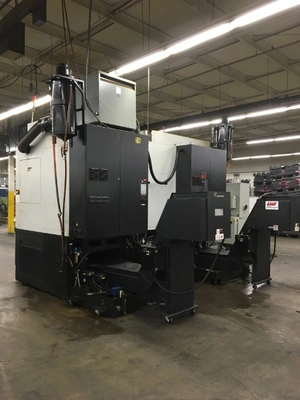

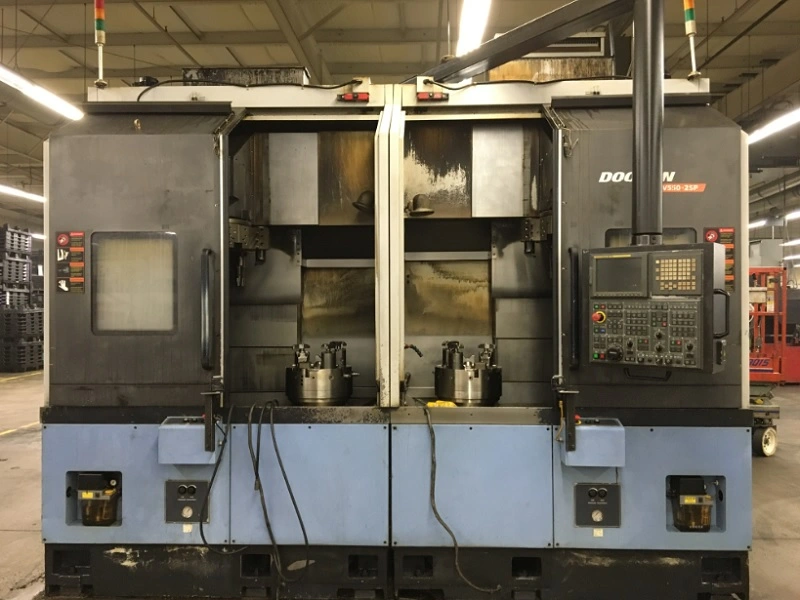

USED 2009 DOOSAN PUMA
Overview
Specs

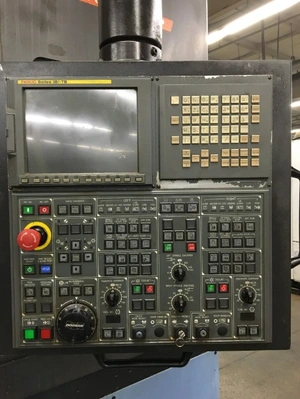

Control: Fanuc 18i-TB
Diameter of Swing Over Bed: 31.5"
Diameter Swing Over Cross Slide: 19.3"
Max Turning Diameter: 28.7"
Max Turning Length: 29.5"
X-axis Travel: 15.4"
Z-axis Travel: 31.0"
Spindles Nose: A2#11
Spindles Speed: 2,000 RPM
Spindles Drive Motor: 50 HP
Turrets Capacity: 10
Machine Dimensions: 150"L × 107"W x 121"
Machine Weight: 40,000 LBS
Equipped With
Curvic Coupling
Hydraulic Clamping
Bi-Directional Indexing W/ Hydraulic Motor
Spindle Orientation
Tool Life Management
Spindle Load Monitoring
Additional M Codes (8 sets)
(2) LNS Chip Conveyors
