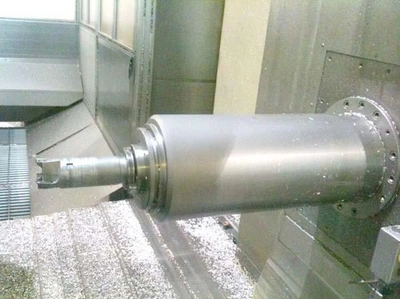

Spindle Diameter: 5.11"
Spindle Motor: 60 / 50 HP
Spindle Speeds(4 geared ranges): 6,000 RPM
Spindle Taper: CAT 50
X-Axis Travel: 157"
Y-Axis (Vertical) Travel: 118"
Z-Axis (Column) Travel: 60"
W-Axis (Spindle) Travel: 29"

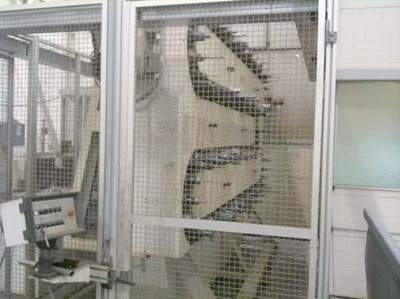

Tool changer capacity: 120 ATC

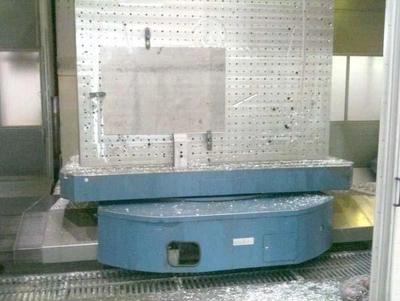

Rotary Table: 100" x 80"
Rotary Table Load / Indexing: 48,500 Lbs / 360,000°
Rapid Traverse: 590 IPM
Feedrates (X, Y, Z): 0.04 - 372 IPM
Dimensions: 328" x 296" x 202"
Weight (approx.): 73,000 Lbs
Heidenhain TNC 426 CNC Control
Coolant Through Spindle
Dual Chip Conveyors

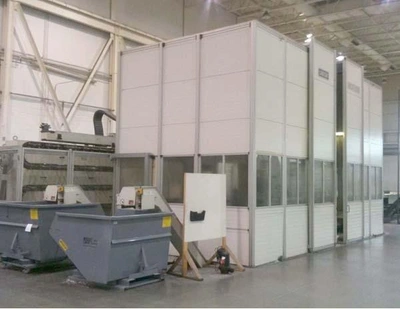

Full Enclosure
Coolant Tank With Filter System
Used In All Aluminum Machining Shop
Spindle Cartridge Is Fixed, No Quill Travel
