FEATURES

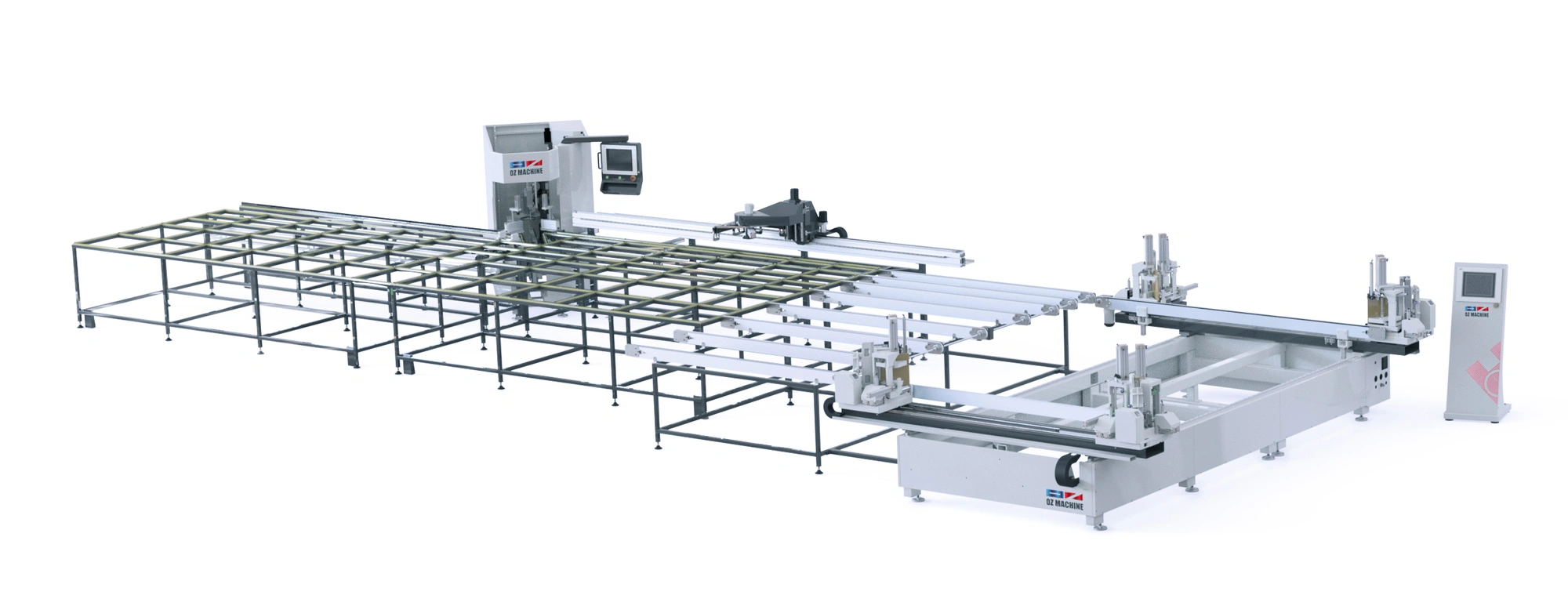

Used for simultaneously welding four corners of PVC / Vinyl profiles and removing the burrs from the profiles after welding.
Pneumatic motion
Automatic frame output unit and automatic profile rotation system
Batch processing and precision measurement
Process programming and large memory
Safe working area with safety barrier
Welding time adjustment and digitally controlled heating
Heat adjustment up to 660°F with digital thermostat
0.0078 inch welding range
Touchscreen control panel and profile recognition system
Quick transferring the profile to cleaning unit with robot system after welding

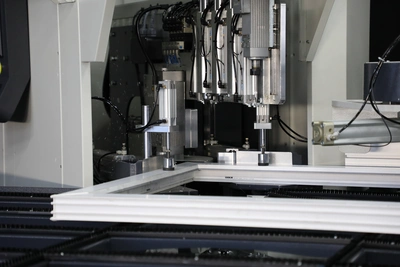

Cleaning of bottom, top, internal and external surfaces of the profile by two independent cleaning units
Easy programming with manual control system (hand wheel)
Manual operator adjusted axial speeds
Real time communication between two machines
Memory capacity for 1000 profiles
Manual and automatic operation
Automatic cleaning with 11 profile cleaning blade
Separate cleaning blades for colored and white profiles
Data transfer over remote network connection, Ethernet and USB
Alarm and warning sign on screen
Quick and easy to replace hot press teflon
Processing time monitoring on screens during operation
Uniform heat distribution on plate, profile cooling station
Rotation speed optimization and picking up unit for finished profile on the line
Standard Equipment
Conveyor
Saw blade for corner cleaning
Cleaning blades
Cutters
Profile holding and cooling unit
Automatic profile rotation system
Barcode reader
Optional Equipment
Special mold
Gasket pressing system
Automatic
