FEATURES

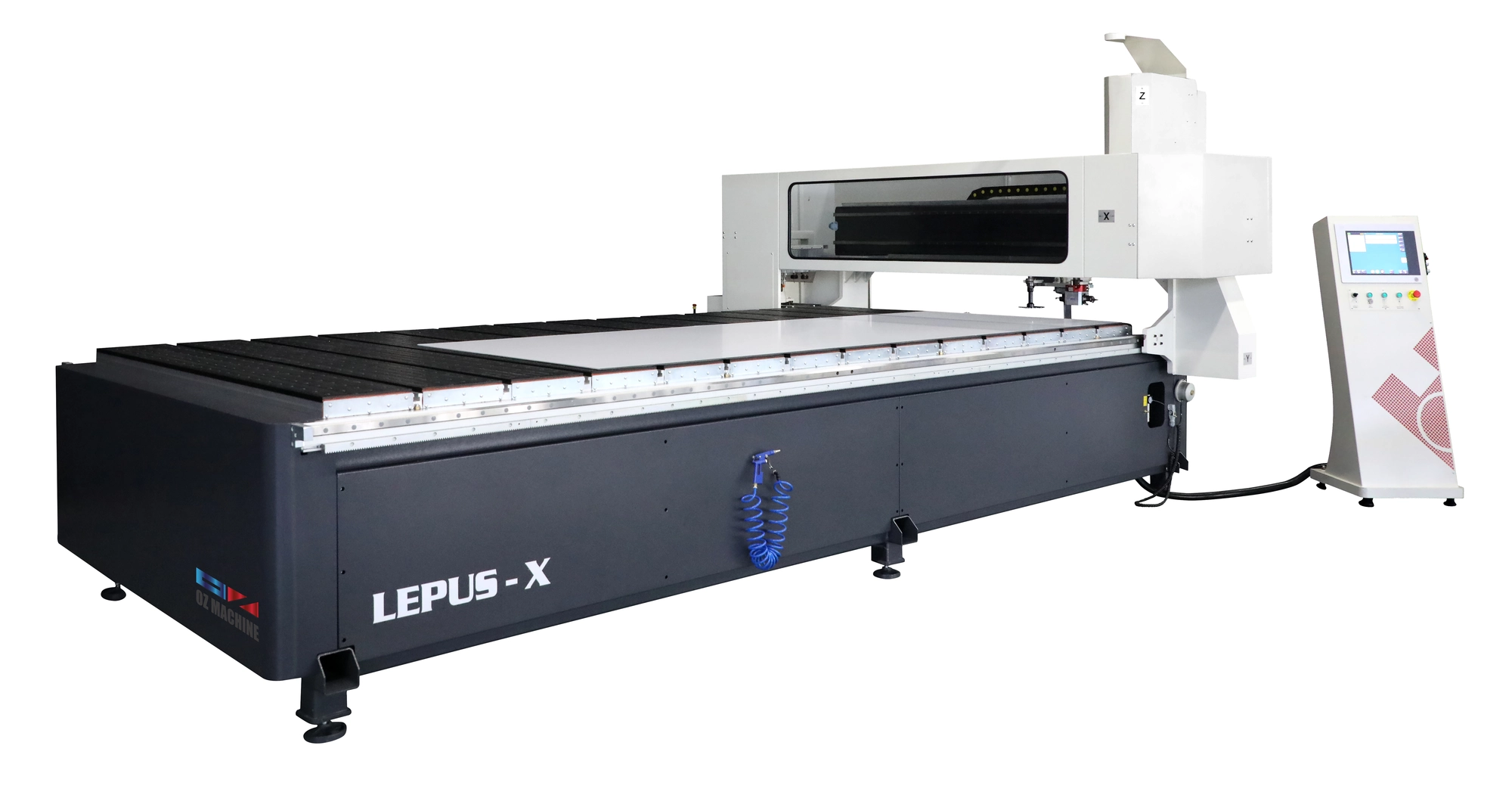

Used for v-channel opening, processing and sizing operations of aluminum and composite panels and plates.Aluminum profiles can be processed with optional equipment.
Processible material types/classes; aluminum plate, aluminum composite panel, laminated composite, wooden laminated composite, various vinyl plates, aluminum industrial or semi-industrial plates
Automatic magazine for 8 tools
Ability to process wooden and plastic plates by replacement of milling cutter
Smart CAM post processing
Vacuuming in independent sections
Automatic tool length measurement
External dust vacuuming system
Automatic, pneumatic alignment system
Industrial PC with Windows based touchscreen and easy to use practical interface
Remote access
Data transfer over remote network connection, Ethernet and USB
Special vacuum circuit designed for local vacuuming and automatic zoning
Automatic lubrication in processing area
Automatic zoning with the ability to routinely focus vacuum on processing area thanks to the special software

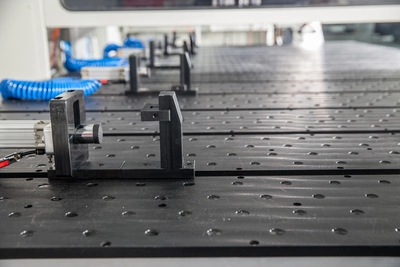

Pneumatic clamps for optional profile processing feature
Ability to disable dust vacuuming system when pneumatic clamping system is activated
Dust vacuuming system impact control with large tool procedure

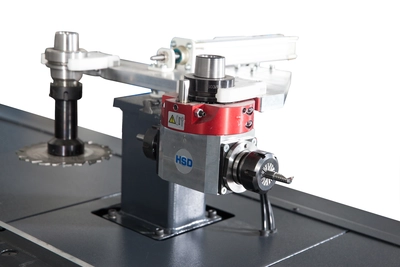

Processing at -90°, 0, +90° fixed angles with profile processing feature and recommended special tools, and end milling with a saw blade with maximum 5.9 inch diameter
Ability to process 5 surfaces (top, sides, heads) of the profile
Standard Equipment
2D CAD CAM
Cutter (2 pcs 0.15 inch cutter, 2 pcs V channel cutter)
Vacuum pump (2 pcs)
Dust vacuuming system
Optional Equipment
Special cutter tools
Optional length
Profile processing feature
