FEATURES
Used for cutting processes of aluminum, vinyl and wooden profiles.
Hydro-Pneumatic cutting
Servo controlled rotation axis

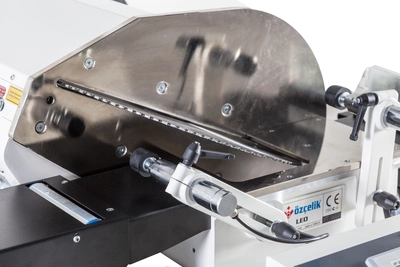

Secure cutting by the cover equipped with a safety sensor

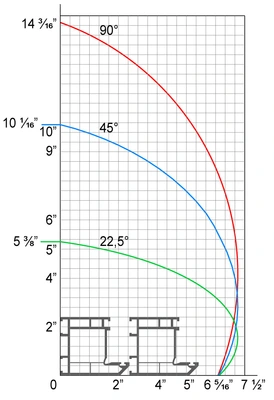

Automatic positioning at all degrees between -22.5° and +45° with servo motion system
Industrial PC with Windows based touchscreen and easy to use practical interface
Remote access
Data transfer over remote network connection, Ethernet and USB
Batch processing and precision cutting
Ability to perform cutting automatically from the list or manually
Adjustable saw blade travel speed
Ability to control saw blade travel distance
Process programming and large memory
Automatic horizontal clamps
Automatic size calculation for mold cutting
Double hand control application
Standard Equipment
22" saw blade
Cooling system
Digital conveyor - LEO K (1 pcs)
Optional Equipment
Conveyor (COMET M)
Barcode printer
Dust vacuuming system
Profile height measurement
