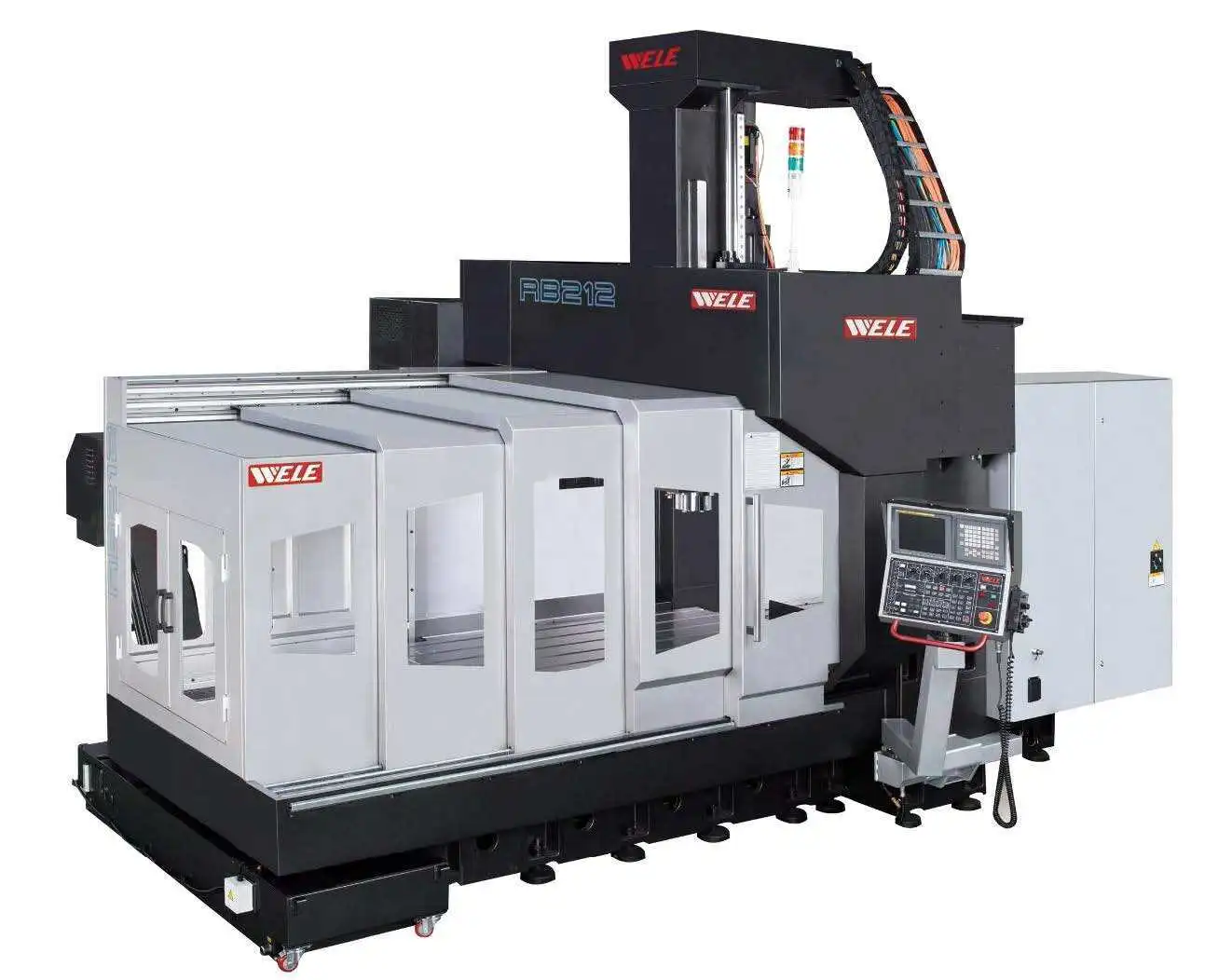

NEW TOYODA-WELE RB212
Overview
Description
Machine Features Overview
FANUC 31iMB PLUS CNC Machine Control
High Speed – 40 HP - 12,000RPM Integral Motor
Spindle – Big Plus CAT50 Spindle Taper
High Power – 30 HP – 6,000RPM Gear Driven
Spindle – Big Plus CAT50 Spindle Taper
(32) Thirty-Two Pocket Standard Automatic Tool
Changer. (40) Tools Optional Upgrade Available
Precision Hand Scraped Machine Metal to Metal Contact Points for Long Term Accuracy, Vibration Dampening and Extended Machine Life
Standard FANUC Package Includes 1000 Block Look Ahead Function and 2MB Memory Standard.
Embedded Machine Operator and Maintenance Manuals Resident on Controller.
Dual Chip Auger with Lift Up Type Conveyor as Standard Feature. Includes Coolant Wash Down.
1000 PSI Through Spindle Coolant Standard with High Tank and Additional Filtration Unit
Specifications
| Taper | CAT50 (BIG PLUS) | CAT50 (BIG PLUS) |
|---|---|---|
| X Travel | 83.5" | 2,120.9 mm |
| Y Travel | 47.2" | 1,198.9 mm |
| Z Travel | 31.5" | 800.1 mm |
| Table-L | 78.7" | 1,999 mm |
| Table-W | 43.3" | 1,099.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Control | CNC (Fanuc 31iMB Plus) | CNC (Fanuc 31iMB Plus) |
| Dimensions | 230"x187"x163" | 230"x187"x163" |
