Or as low as $57.58 USD/month over 60 months

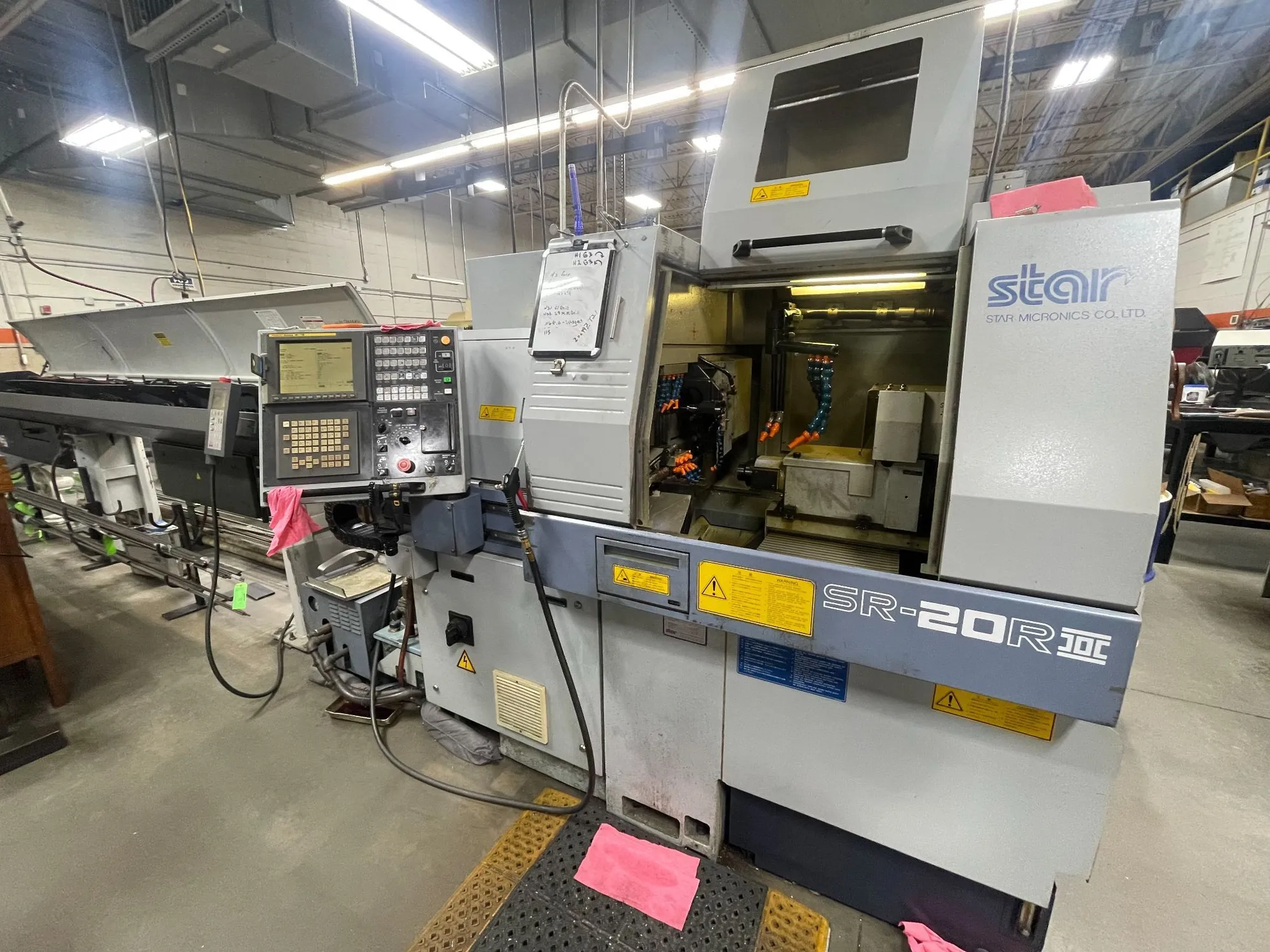

Features fully independent front/back working capability; built to produce complex parts for medical and other industries in one operation.
| Capacity | 0.75" | 19.05 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 8 | 8 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub Spindle Indexing | 15 degree | 15 degree |
| Live Back Working Tools? | Yes | Yes |
| Control | CNC (FANUC 18I TB) | CNC (FANUC 18I TB) |
| Dimensions | 87” (L) x 42” (W) x 68” (H) | 87” (L) x 42” (W) x 68” (H) |
| Weight | 5,000 | 5,000 |
General Specifications: Buyer must verify all specs:
Control: Fanuc 18i-TB
Number of Axes: 6 (7)
X1, Y1, Z1, C1, X2, Z2, C2 (opt)
Max. Diameter: 3/4"
Max. Headstock Stroke: 8.07" standard
6.68" w/ gripping unit
Max. Spindle Speed: 10,000 rpm
Main Spindle Indexing: C-Axis (0.001 degree)
Main Spindle Motor: 2.2kw/3.7kw
Number of Tool Stations:
Gang Type: 6 Turning Tools
5 Power-driven Tools
4-spindle Sleeve Holder: 4 Front working Tools
4 Back working Tools
Max. Drilling Capacity: 10mm (4 spindle sleeve holder)
8mm (power driven attachment)
Max. Tapping Capacity: M8x1.25 4-spindle sleeve hldr
M6x1.0 power driven attachment
Coolant Tank Capacity: 145 L
Sub-spindle
Max. Diameter: 3/4"
Max. Part Length Pick-off: 3.14"
Max. Part Protection Length: 1.18"
Max. Spindle Speed: 8,000 rpm
Spindle Indexing: 15 Degree (C-Axis optional)
Motor: 1.5kw/2.2kw
Tooling: 4 stationary or power-driven
Max. Drilling Capacity: 8mm stationary tools
5 mm power driven tools
Max. Tapping Capacity: M8x1.25 stationary tools
M4x0.7 power-driven attachment
Dimensions, approx. (w x d x h): 87" x 42" x 67.2"
Weight (approx): 5000 lbs
Gun Drilling Attachment
LNS Express 332
Channel Sets 11, 17, 23.
Tri-Mist Collector
Misc Live tools and collets
High Pressure Coolant System
