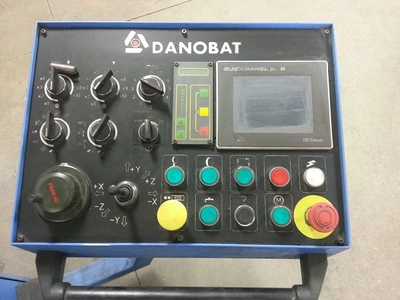

Control: Fanuc POWER MATE 0
Table Size: 23.6" x 11.8" (600 x 300 mm)
Max Table Load: 660 LBS (300 KG)
Max Grinding Height: 12.79" (325 mm)
X Axis Travel (Table): 23.6" (600 mm)
Y Axis Travel (Vertical): 13.7" (350 mm)
Z Asis Travel (Cross): 11.8" (300 mm)
Grinding Wheel Size: 14"OD x 2"W x 5"B (350 x 50 x 127 mm)
Grinder Wheel Speed: 1,500 RPM
Grinder Wheel Motor: 5 HP (4 KW)
Machine Dimensions: 99"L x 79"W x 79"H (2.5 x 2 x 2 M)
Machine Weight: 2,275 LBS (3,300 KG)
RS232 Port On Control
Incremental Down Feed
