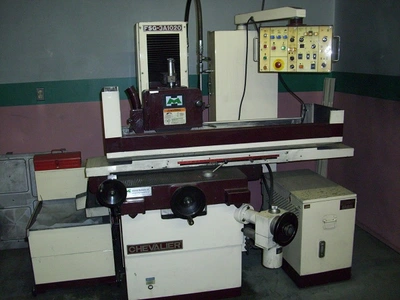

USED 1998 CHEVALIER FSG-3A1020

Table Size: 10" X 20"
Magnetic Chuck Size: 10" X 20"
Longitudinal Automatic: 22-7/8"
Longitudinal Manual: 24-3/8"
Max Distance Table To Center Of Spindle: 21-1/2"
Cross Travel Automatic: 11-7/16"
Cross Travel Manual: 11-7/16"
Vertical Working Height: 18"
Standard Size Grinding Wheel: 12" X 1" X 1-1/4" Bore
Grinding Wheel Speed: 2,050 RPM
Main Motor: 2 HP
Floor Space: 96" X 61" X 75"
Machine Weight: 3,500 LBS

Automatic Plunge Grinding Cycle
High Precision Cartridge Type Spindle
Slideways/Durable Slideways Control Station
