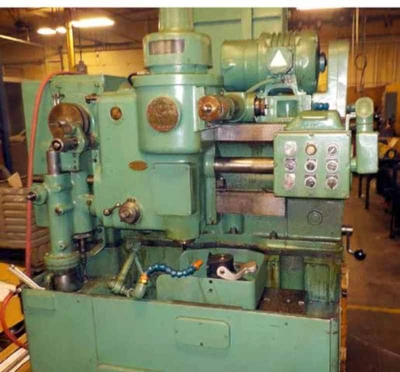

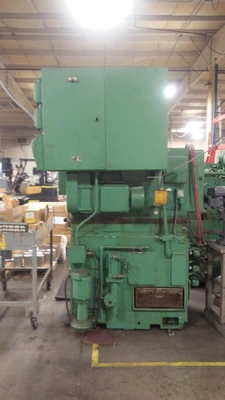

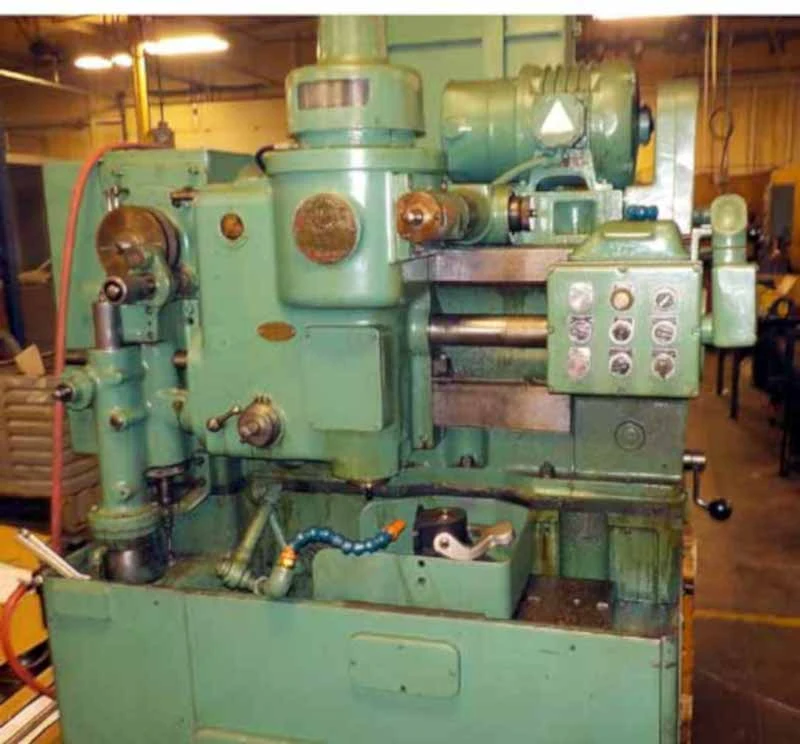

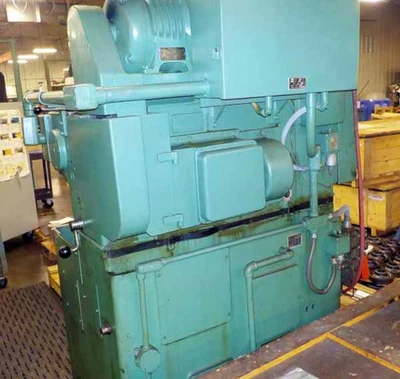

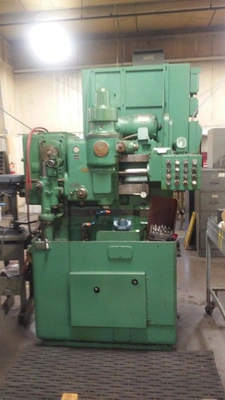

USED 1957 FELLOWS 4GS

Maximum Pitch Diameter External: 6"

Maximum Pitch Diameter Internal: 6"

Maximum Diametral Pitch Spur: 4

Maximum Diametral Pitch Helical: 5

Maximum Face Width External & Internal: 2"

Maximum Helix Angle with Standard Guides (using 5" Cutter): 45 DEG Spindle Speed: 37-635 SPM

Approximate Dimensions: 56" LR x 44" FB x 82"H

Approximate Weight: 6,500 lbs

For External And Internal Spur And Helical Gears
Splines
Clutches
Cams And Other Non-Involute Shapes
Motor Driven With 3 HP, 3 Phase, 60 Cycle, 220 Volt Main Motor
Coolant Pump Motor
MD Lubrication System

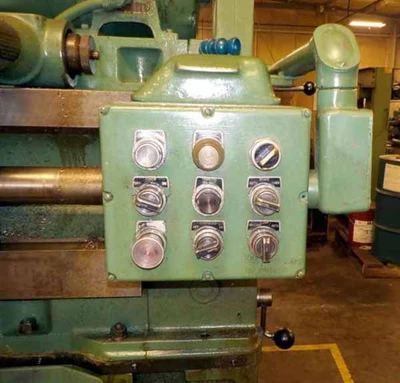

Complete Electrical Controls
Straight Spur Guide
Manual, Semi-Automatic And Fully Automatic Cycles

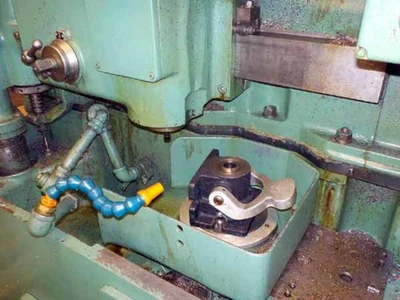

Coolant System Automatic Lubrication System
Change And Feed Gears
***Two Identical Machines Available***
