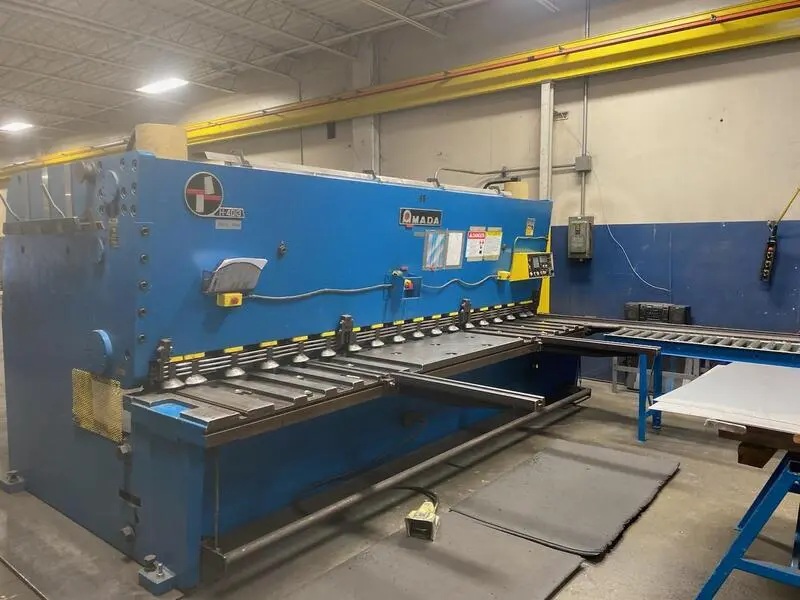

USED 1979 AMADA H-4013

Capacity (Mild Steel): 156" x 1/2"
Length of Knives: 162"
Distance between Housings: 163.5
Gap: 19.69"
Rake Angle: 0 DEG - 1.5 DEG (Adjustable)
Hold-downs: 18
SPM: 40 (Approx.)
Floor to Top of Bed: 44.5"
Pump: Hydraulic
Motor: 40 HP (1460 RPM)
Overall Dimensions: 186" L-R x 96" F-B x 102" H
Weight: 36,400 Lbs. (Approx.)

Squaring Arm
Push Button Control Panel
