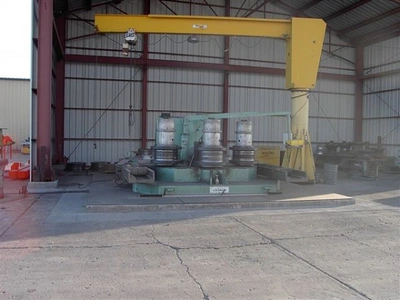

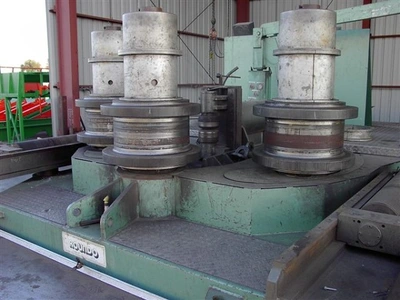

USED 1996 ROUNDO R-13S
Overview
Specs
Angle Bend Capacity (leg out 60") 8" x 8" x 1 - 1/4"
Angle Bend Capacity (leg in 50") 3" x 3" x 1/4"
T-Section (leg out 50") / (leg in 60") / (leg down 50") WT 8" - WT 3"
Flat Bar on Flat Hard Way 120" 16" x 2-3/8"
Flat Bar on Flat Hard Way 80" 12" x 3-1/2"
Flat Bar on Flat Hard Way 60" 3" x 1/2"
Flat Bar on Flat Easy 70" 22" x 4"
Square 100" / Square Tube 8" x 8" / 16" x 16" 5/8"
Round Bar 80" / Pipe Schedule 40 10 1/2" / 20"
S & WF Beams 200" W 36" x 210#
WF Beams 200" W 33" x 241#
WF Beams 150" W 30" x 211#
Channel In & Out (60") MC 18" x 58# C 6"
Beam On X-X Axis (1,800") W 24" x 117# W 6"
Channel On X-X Axis (700") MC 16" x 58# C 6"
Diameter of Bending Rolls 32"
Main Motor 108 HP
Floor Space (L x W x H) 218" x 155" x 168"
Weight (approx) 122,800 Lbs
Equipped With
Hydraulically Controlled Guide Rolls - Up / Down / In & Out
Large Selection of Spacers For Beam on Edge, Channels, Bars and Tubing
Full Pendant Control
Oversized Shaft, Motors & Drive (normally found on R-15-S machines 15.748")

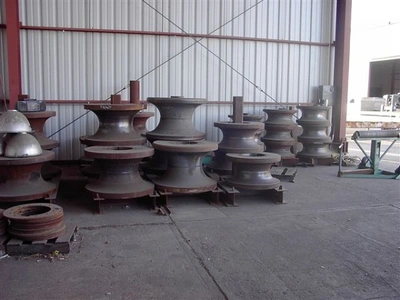

Standard Set of Angle / Bar Rolling Dies
Set of Square / Rectangle Tubing Dies - Reversible For 3/8" & 1/2" Wall
Power In-Feed Rolls 12" Diameter x 3/4" Wall

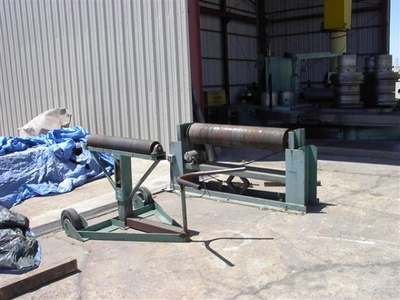

Portable Hydraulic Support Roll Stand
Five (5) Sets of Pipe Rolls 8", 9", 10", 12" and 20" Diameters
