USED 1944 LEBLOND NI
Overview
Specs
Swing over bed, gap closed: 34"
Max center distance: 96" closed / 164" open
Swing over slide: 21.5"
Swing through gap: 60"
Max length of part turned in gap: 68"
Spindle nose: L-3

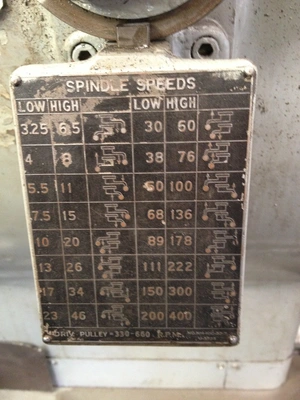

Spindle speeds: (32) 3.25 to 400 RPM
Taper in tailstock: #6
Width of bed: 26"
Width of carriage: 40"
Threads: (48) ¾ to 46 TPI
Feeds: (48) .004 IPR to .250 IPR
Main motor: 40 HP 220V
Approx dimensions: 15-1/2'L x 61/2'W x 7'H
Approx weight: 23,300 LBS
Equipped With
Taper Attachment

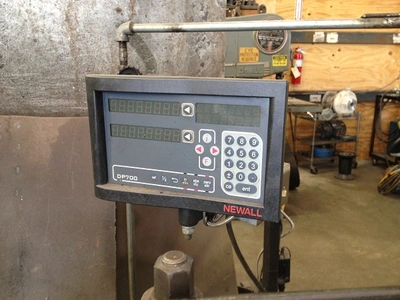

New Newall 2-axis DRO
New clutch pack
New motor pulley
New belts
New bearings in gearbox complete set
New coolant pump
Just rebuilt drive motor
New motor starter and control box
New hour meter
