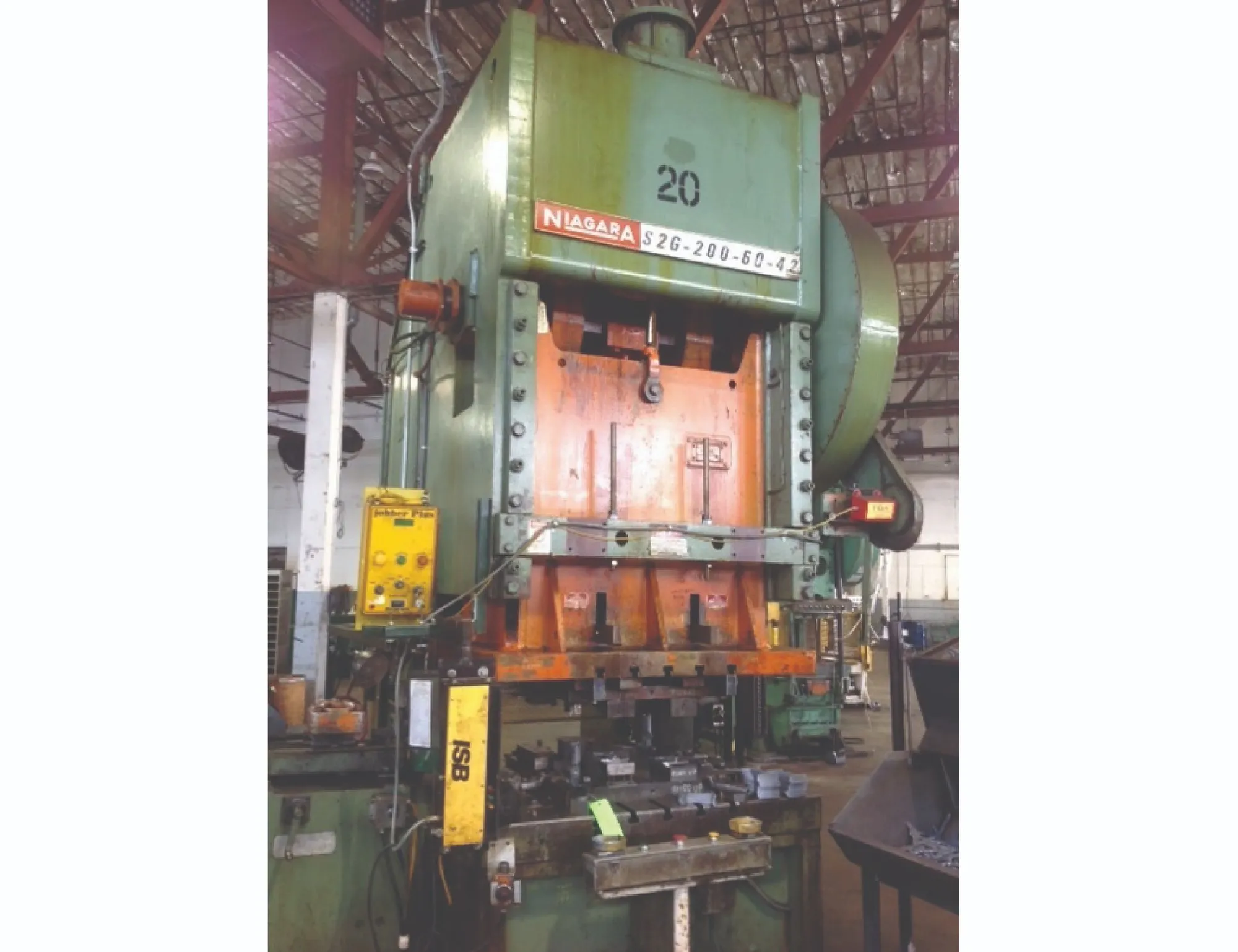

Used 200 Ton Niagara Double Crank Gap Press, model S2G-200-60-42, 1970. Features 60x42-inch bed, 200T capacity, 8-inch stroke, double crank, air clutch & brake, and T-slotted bolster/ram. Equipped with light curtains and pneumatic cushion. Catalog weight: 66,800 lbs.
| Ton | 200 T | |
| Bed L-R | 60 in | |
| Bed F-B | 42 in | |
| Stroke | 8 in | |
| Shut Height | 22.5 in | |
| OBI Single Double | Double Crank | Double Crank |
| Cushions | yes | yes |
Capacity: 200 Ton
Stroke: 8”
Shut Height: 22.5”, SDAU Over Bed
Slide Adjustment: 10”
Speed: 30 - 60 SPM
Bed Area: 60” LR x x 42” FB
Bolster Thickness: 6”
Ram Area: 60” LR x 42” FB
Equipped With:
6” T-Slotted Bolster / T-Slotted Ram
Air Clutch & Brake
Air Counterbalances
Palm Button Stand
Light Curtains
Pneumatic Cushion
Catalog Weight: 66,800#
GA Drawing upon request.
