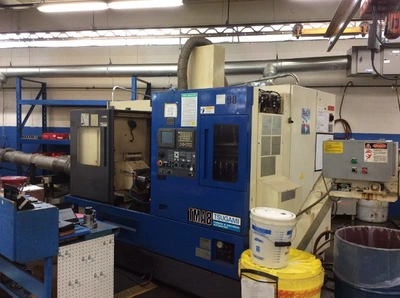

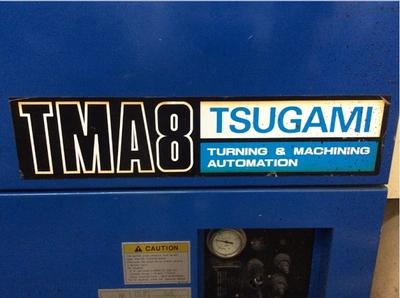

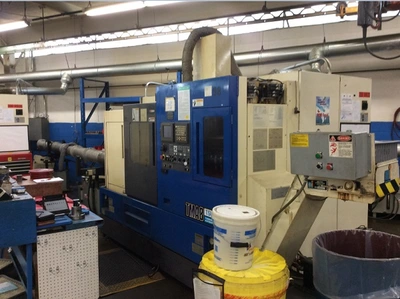

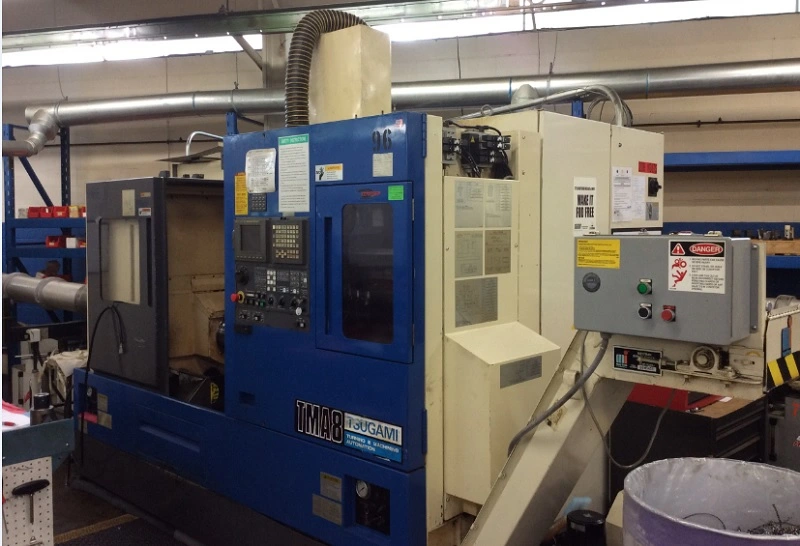

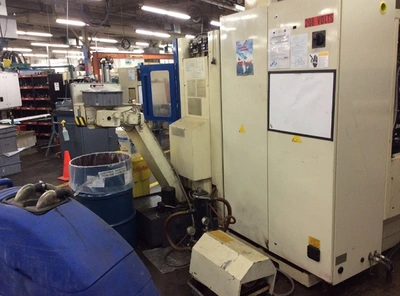

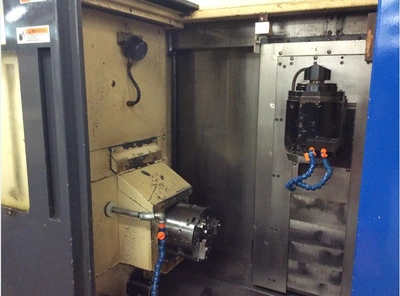

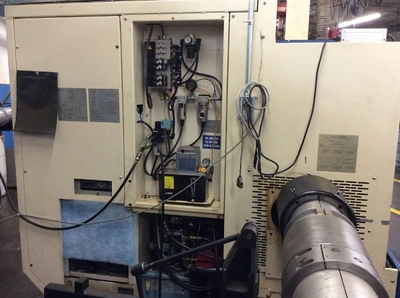

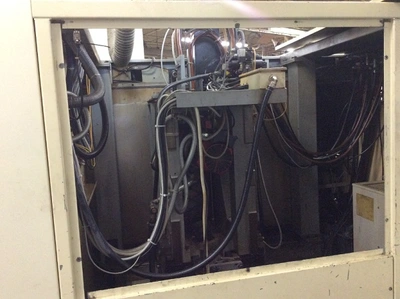

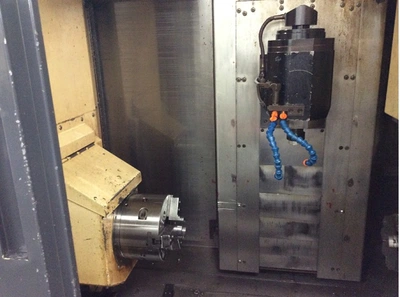

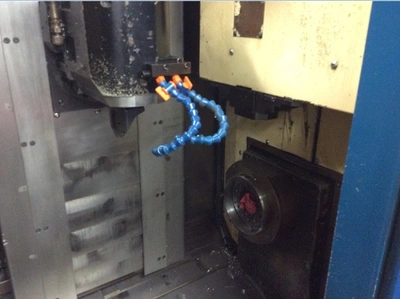

USED 2003 TSUGAMI TMA8

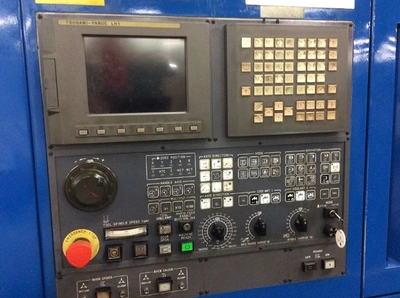

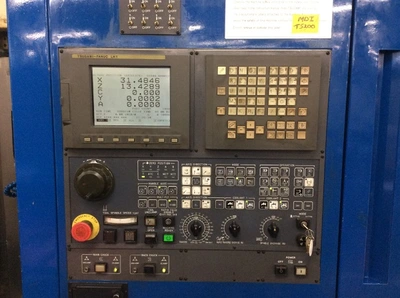

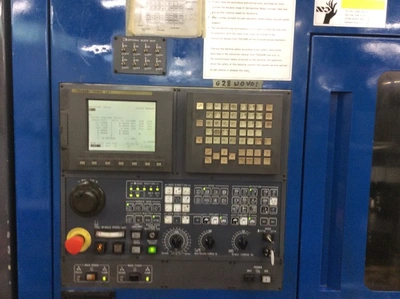

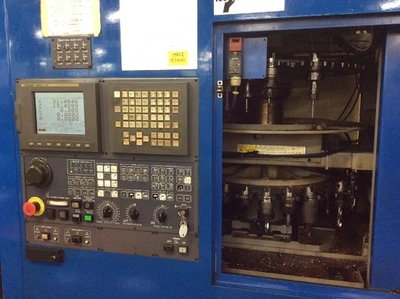

Control: Tsugami-Fanuc LH1 (18i-TA)

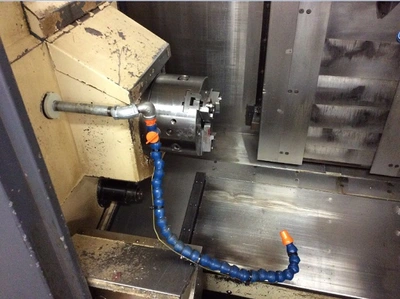

Chuck Diameter: 8" (203mm) Hollow
Max. Machining Diameter: 8.66" (220mm)

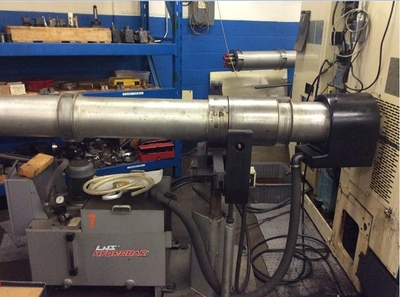

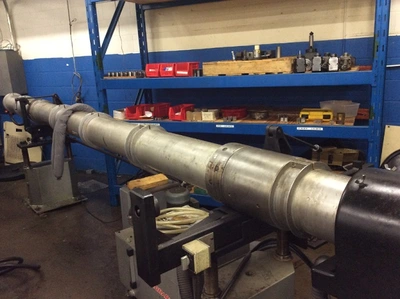

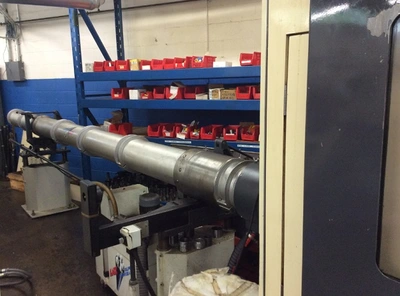

Max. Bar Machining Capacity: 2.55" (65mm)
Max. Machining Length: 14.56" (370mm)

TAVELS

X-Axis Travel: 16.9" (430mm)
Y-Axis Travel: 4.72" (120mm)
Z-Axis Travel: 15.74" + 6.5" (400mm + 165mm)

MAIN WORK SPINDLE

C-Axis Main Spindle Rotation: 360,000/ 0.001 Deg.
Spindle Speed Range: 35 - 7000 RPM
Spindle Min. Indexing Angle: 0.001 Degree
Spindle End: 7.48" (190mm) Flat

SUB-SPINDLE

Spindle Speed Range: 35 - 7000 RPM
Spindle Min. Indexing Angle: 0.001 Degree
Spindle Chuck Size: 6" (152mm)
A-Axis Sub-Spindle Longitudinal Travel: 25.9" (660mm)
A-Axis Rapid Traverse Rate: 787"/ Min. (20000mm/Min.)
E-Axis, Sub-Spindle Rotation: 360,000 at 0.001 Degree
E-Axis Cutting Feed Rate: 0 - 12000 Deg./Min.
Spindle End: 5.5" (140mm) Flat

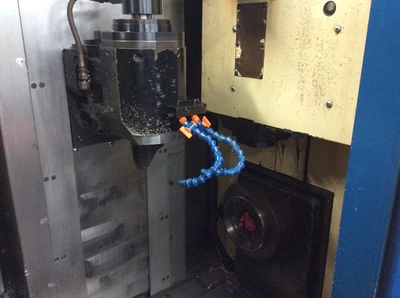

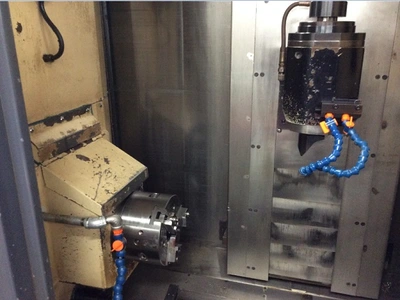

TOOL SPINDLE

Spindle Type: 1 Spindle with ATC
B-Axis, Tool Head Positioning Angle: 0 - 180 Degrees
Tool Spjndle Inedexing Angle: 4- Positions/ 90 Degrees
Tool Spindle Speeds: 80 - 6000 RPM
Boring Bar Shank Diameter: 1.25" (32mm)
Tool Size: .78" x .78" (20mm x 20mm)
Tool Change Time, Tool to Tool: 0.8 Seconds

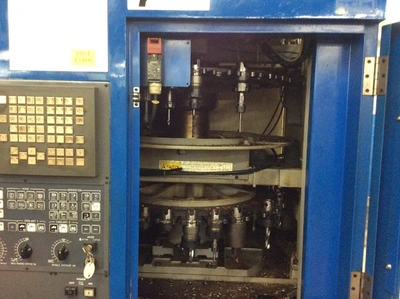

Tool Storage Size: 60 Tools
Tool Shank Taper: KM-40

MACHINE DIMENSIONS

Required Floor Space (Not Incl. Bar Feed): 138" x 84" (3500mm x 2126mm)
Height of Machine (Not Incl. Mist Collector): 88" (2250mm)
Machin Weight (Not Incl. Bar Feed) Approx.: 17600 Lbs. (8000kg)
