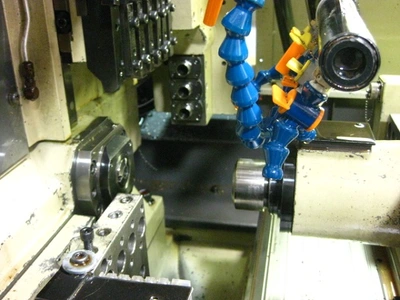

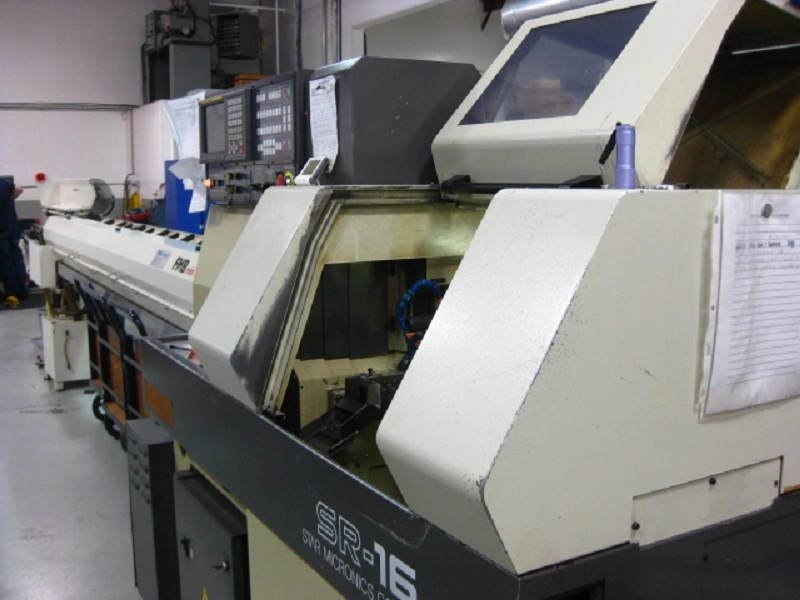

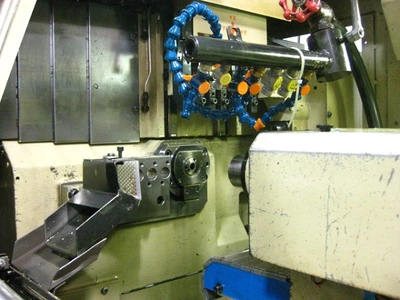

USED 1995 STAR SR-16
Overview
Specs
CNC control: Fanuc 16TTA
Max. turning diameter: 5/8"
Max. headstock strike: 8"
Max. Stationary cap.: ER-16 4 position front and back end working
Power-driven attachment: ER-16 3 POSITION
Spindle speed: 500-10,000 RPM
Main spindle motor: 2.2 Kw/3.7 Kw
Main & Sub spindle indexing: 15 deg.
-Power-driven att. spin. speed-
Cross mill: 350-5000 RPM
No. of tools: 5-OD
Mill/Drill /slot: (3 live ER-16-Cross)
Tool shank size: 12.7mm x 95mm
-Sub-spindle (back working)-
Max. chucking dia.: 5/8"
Max. length for front ejection: 3-5/32"
Dimensions (approx): 7'x3.5'x6.5'H
Weight (approx): 4400 Lbs
Equipped With
3 Live tool stations
Parts Catcher & Parts conveyor
Coolant system & Splash guards

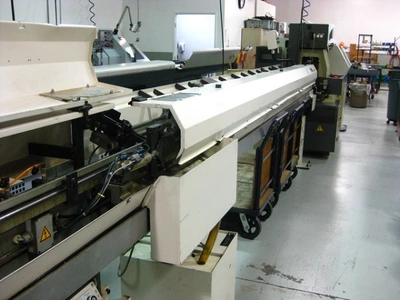

FMB Mini-Turbo 12 magazine bar feed

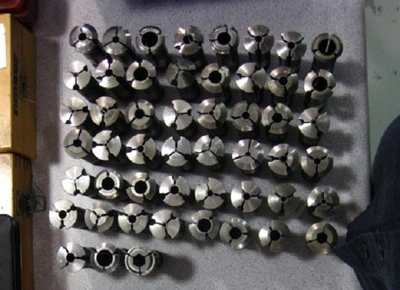

Over 50 carbide guide bushings
All available static holders ER-16 (7pcs total one er-20 holder with modified shank)
