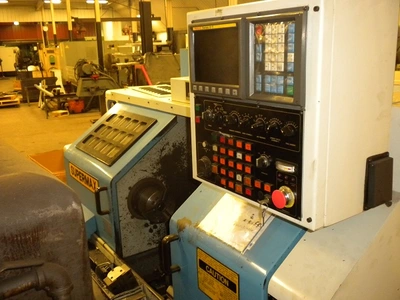

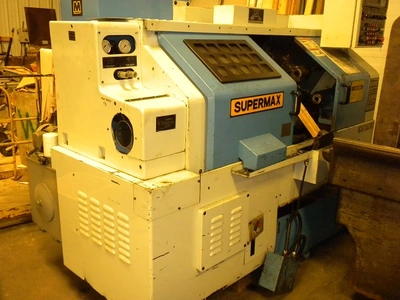

USED 1995 SUPERMAX YCM-TC-2
Overview
Specs
Control: Fanuc O-T
Swing Over Bed: 18.9"
Swing Over Carriage: 12.2"
Center Distance: 21.7"
Maximum Machining Diameter: 9.8"
X-Axis Travel: 5.9"
Z-Axis Travel: 19.7"
Spindle Nose / Spindle Bore: A2-6" / 2.44"
Maximum Bar Capacity: 2.04"
Spindle Speed: 40 - 3500 RPM
Spindle Motor 30 Min. / Cont.: 10 HP / 7.5 HP
Turret Type: 8 Position Turret
Tailstock Quill Dia. / Center: 2.95" / MT #4
Machine Dimensions: 129"x67"x50"
Machine Weight: 8,400 lbs.
Equipped With
6" Hydraulic Chuck
Parts Catcher
