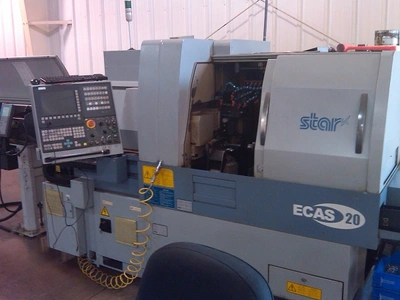

USED 2003 STAR ECAS-20
Overview
Specs
Serial Number: 0070
Max. machining diameter: 20mm(25/32in)
Max. Headstock Stroke: 205mm(8in), with gripping unit: 205mm(8in)
4 spindle sleeve holder
Max. drilling capability: 10mm(25/64in)
Max. tapping capability: M8xP1.25
Max. die cutting capability: M8xP1.25
Power driven attachment:
Max. drilling capability: 8mm(5/16in)
Max. tapping capability: M6xP1.0
Max. milling capability: 10mm(25/64in)
Max. slotting capability: 1.5mm(W)x4mm(D)
Main spindle speed max.: 10,000min-1
Main Spindle motor (continuous/30min): 2.2kw/3.7kw
Dimensions: (WxDxH) 2588mm(102in) x 1150mm(46in) x 1765mm(70in)
Weight 3500 kg(7718Lbs.)
Equipped With

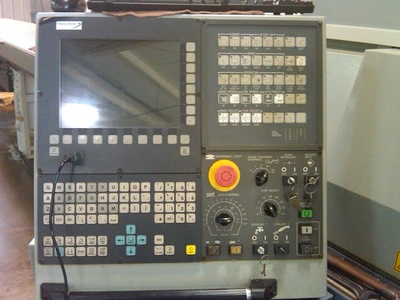

Siemens Yaskawa CNC Control
10 axis machine
Full C-Axis / Both spindles

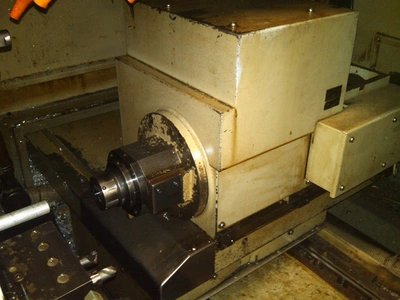

Sub spindle
Live Cross and End milling
3 axis milling

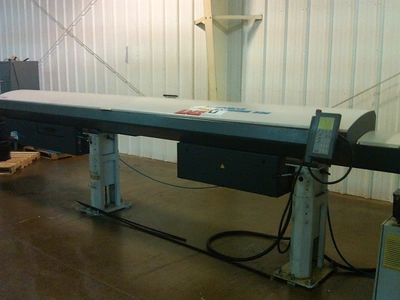

LNS 332 Hydro 12 ft. Barfeeder
Chip Conveyor
