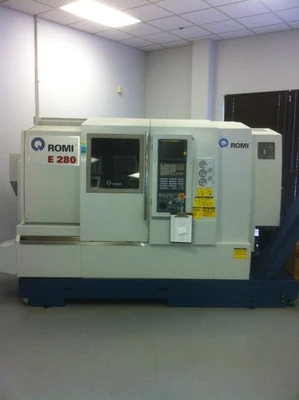

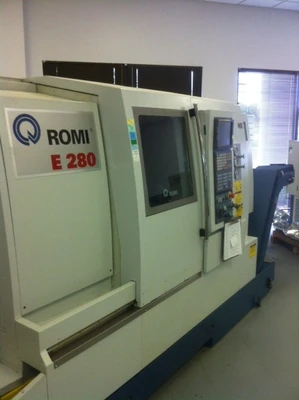

USED 2009 ROMI E280B

Swing Over Bed: 25.59”
Max Cutting Diameter: 11.02”
Max Cutting Length: 15.75”
Distance Between Spindle & Sub-Spindle: 30.71”
Main Spindle Nose: A2-6
Main Spindle bore diameter: 2.87”
Main Bar Capacity: 2.52”
Main Spindle Speed: 4,000 RPM
Main Spindle Drive: 25HP

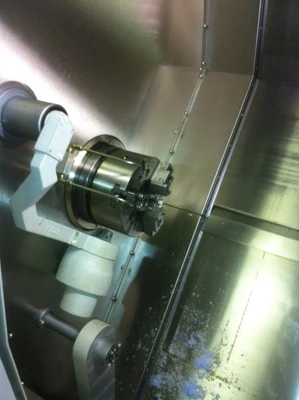

Main Hydraulic 3-Jaw Chuck Diameter: 8.27”
Sub Spindle Nose: A2-5”
Sub Spindle bore diameter: 2.01”
Sub Spindle Bar Capacity: 1.65”
Sub Spindle Speed: 6,000 RPM
Sub Spindle Drive: 15 HP
Sub Spindle Hydraulic 3-Jaw Chuck Diameter: 6.5”
Y-axis travel: 3.34” (+1.96”/-1.37”)

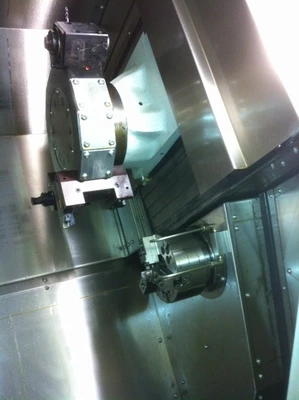

Number of Turret Tools: 12
Speed range - Driven Tools (live): 5 – 5,000 RPM
Square Tool Capacity: 3/4“
Boring Bar Capacity: 1 1/4”
Radial and axial driven tool holder: ER-25
Machine Dimensions: 154"L x 71"W
Machine Weight: 14,000 LBS

Chip Conveyor
Tailstock
Sub Spindle
C Axis
Y Axis
