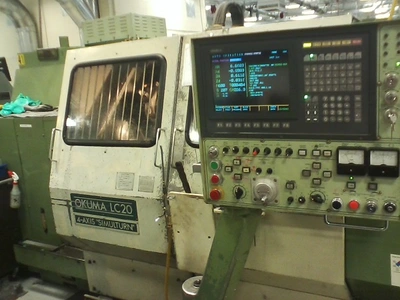

USED 1985 OKUMA LC20

Full Model Number: LC20 4-AXIS SIMULTURN

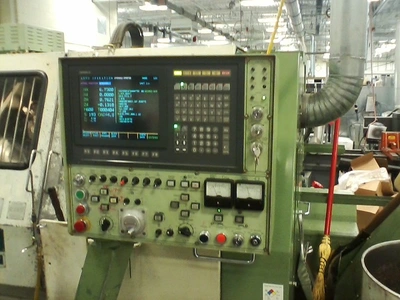

Control: OSP 5000 LG
Swing Over Bed: 15.75"
Maximum Turning Diameter: 11.81"
Maximum Chucking Length: 9.06
Spindle Speeds: 65 - 3,500 RPM
Spindle Bore: 3.94"
Bar Capacity: 2.05"
Spindle Nose: A2-6
Spindle Motor: 30 HP
Number of Turret Positions (Upper, Lower): 8,8
X-Axis Travel (Upper,Lower): 6.89",4.53"
Z-Axis Travel (Upper,Lower): 20.47",18.27"
Machine Dimensions (L x W x H): 165" x 88" x 75"
Machine Weight (approx): 13,000 Lbs

(2) Turn Tool Turrets
8" 3-Jaw Hydraulic Chuck

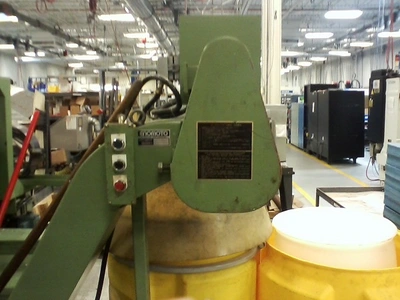

Chip Conveyor
