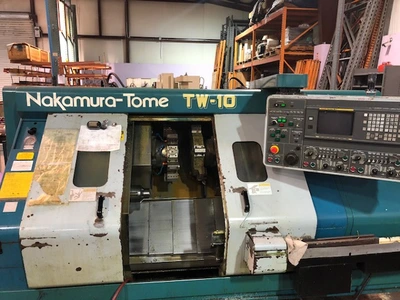

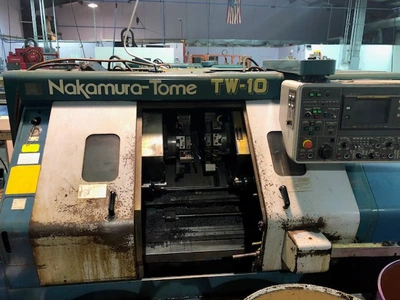

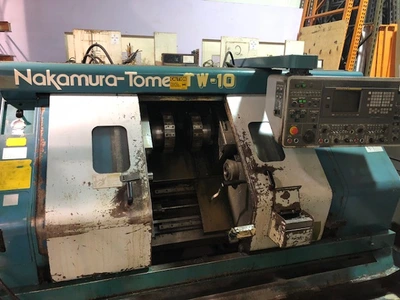

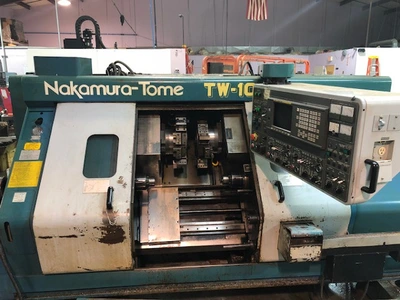

USED 1998 NAKAMURA-TOME TW-10

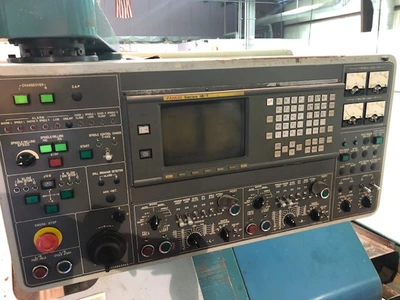

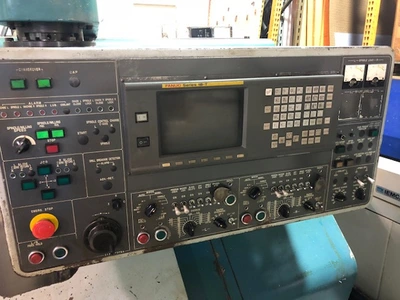

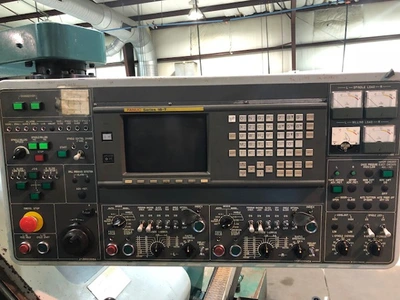

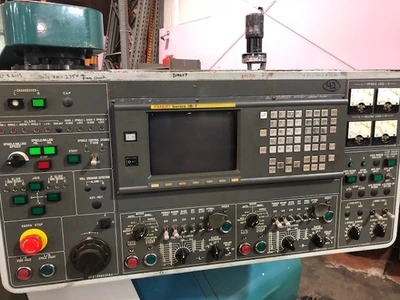

Control: Fanuc 18T
Maximum Swing over Covers: 8.27"
Maximum Turning Diameter: 8.27"
Maximum Turning Length: 6.10"
Distance Btwn. Spindle Nose and Turret: 3.74" - 11.61"
Maximum Bar Capacity: 1.65"
X-Axis Travel (Both): 7.28"
Z-Axis Travel (Left / Right): 7.87" / 24.41"
Spindle Motor: 10 HP
Spindle Speed 5,500 RPM
Spindle Nose / Spindle Bore: A2-5" / 2.05"

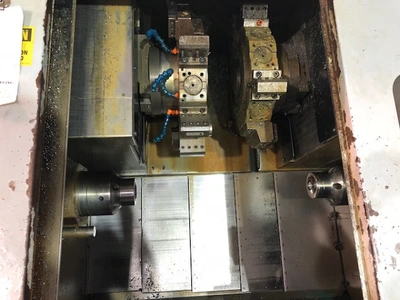

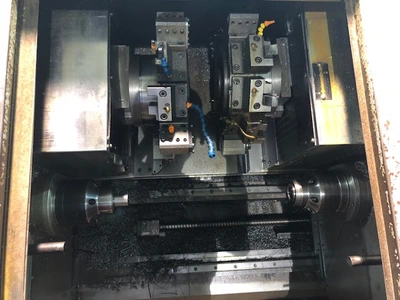

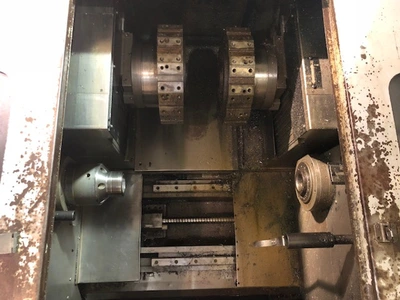

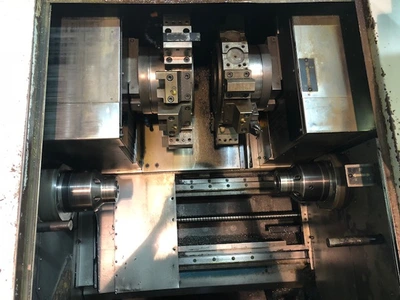

Turret Type: (2)12 Pos. Trts.
Machine Dimensions: 117"x75"x71"
Machine Weight: 10,120 lbs.

(2) 3J Collet Chucks
Automatic Parts Catcher
RS 232 Port Interface
Iemca Boss 542 Barfeed
***4 AVAILABLE, 3 WITH LIVE TOOLING, 1 WITH OUT***
