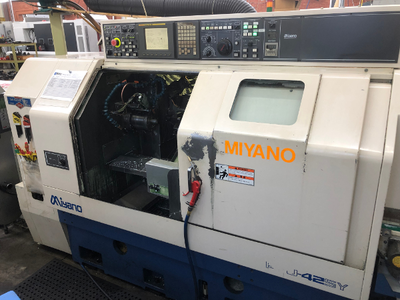

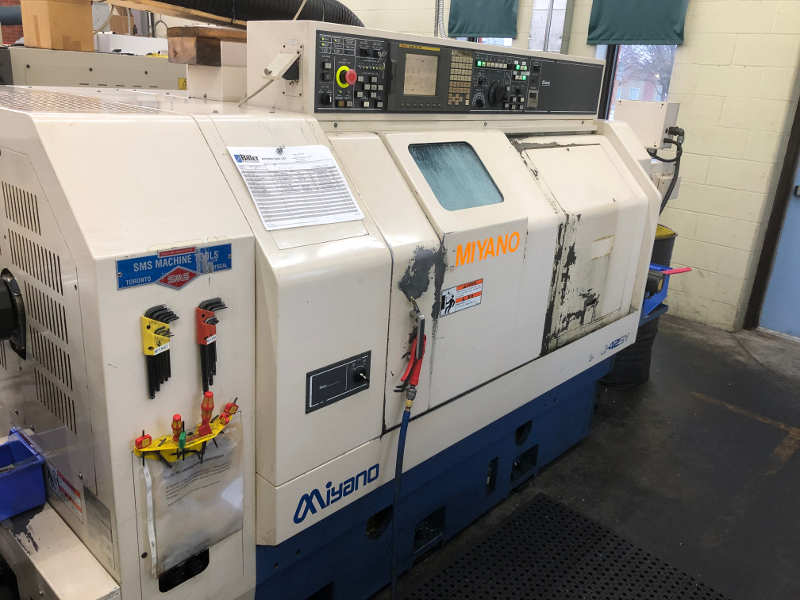

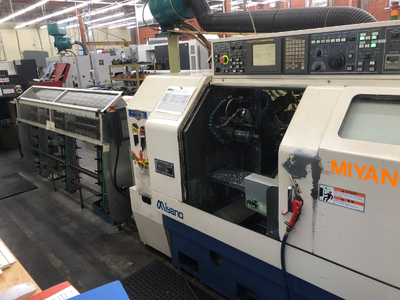

USED 2006 MIYANO BNJ-42SY

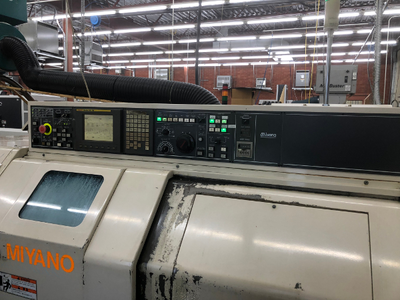

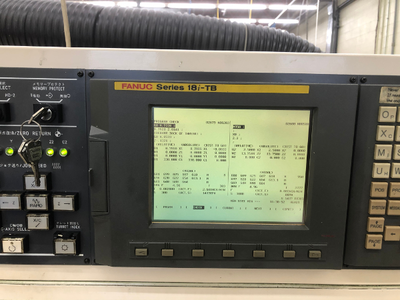

Control: Fanuc 18i-TB

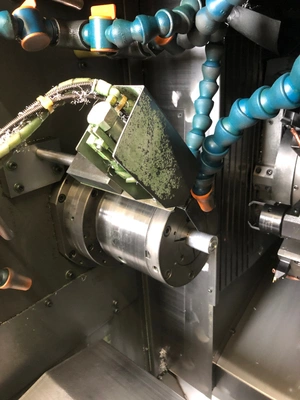

Power Chuck & Size L/R Spindle: 5"/4"Oil Hyd
Max Bar Capacity: 1.65"
Max Turning Length Bar/Chuck: 3.94"/3.15"
Spindle Motor L/R: 10 HP/5 HP
Spindles Speed Range: 67-5,000 RPM
R Spindle Slide Travel X2/Z2: 2.75"/20.3"

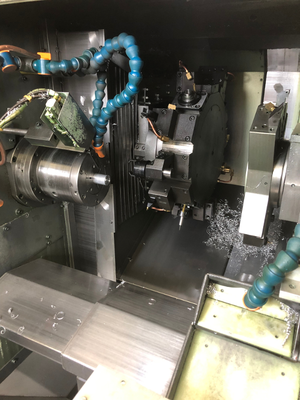

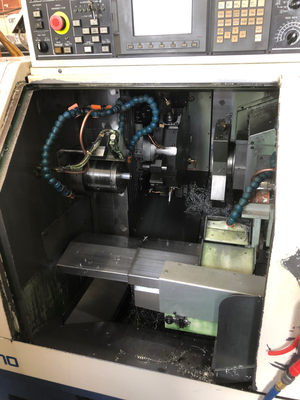

-MAIN TURRET-

Number of Stations: 12
Turret Index Time: .2 Sec
X1 Slide Travel: 6.10"
Z1 Slide Travel: 9.84"
Y1 Slide Travel: +/- 1.18"

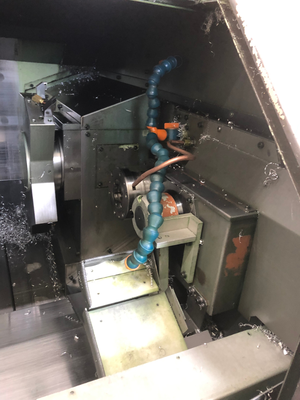

-BACK WORKING TURRET-

Number of Stations: 6
Turret Index Time: .2 Sec

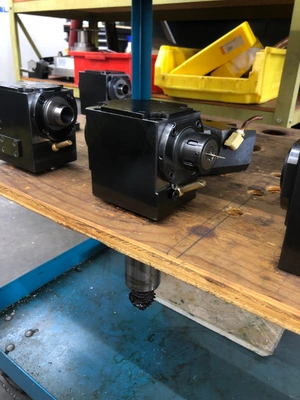

-LIVE TOOLS-

Number of Stations: 6
Spindle Speed: 4,000 RPM
Spindle Motor: 3.3 HP
Max Machine Hole Size: .511"

-MACHINE DIMS & WEIGHT-

Machine Dimensions: 106"L x 59"W x 68"H
Machine Weight: 10,140 LBS

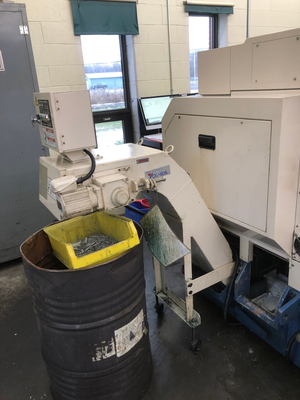

Chip Conveyor

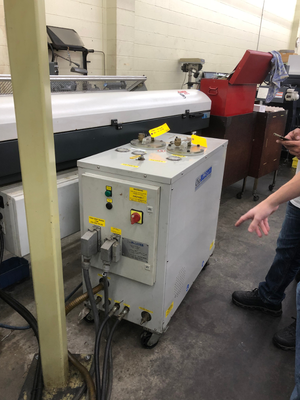

Transformer
Live Tools

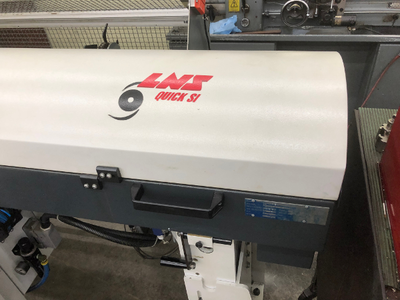

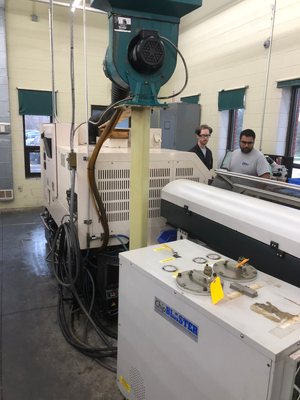

LNS Bar Feeder
