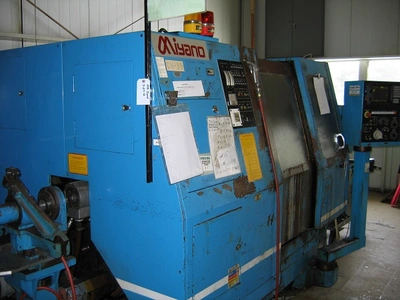

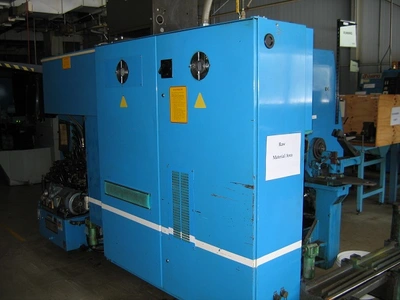

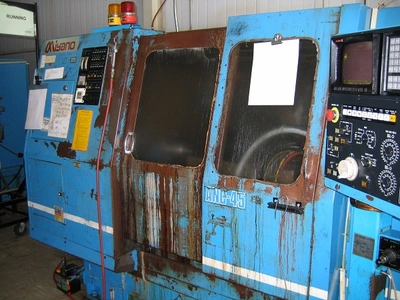

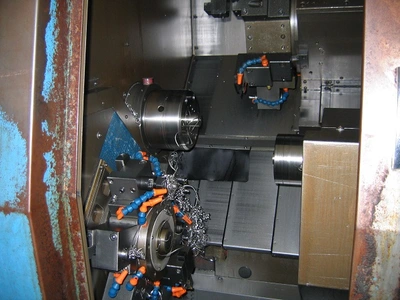

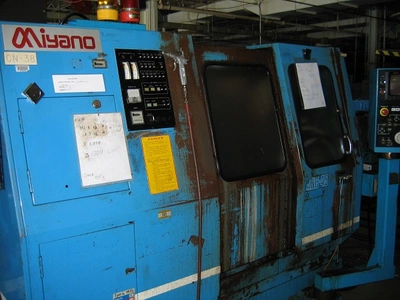

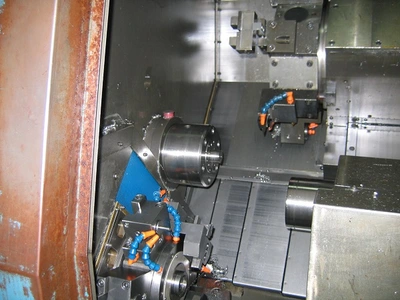

USED 1986 MIYANO ANC-45

Control: Fanuc 11-TT
Max Swing: 23.62"
Max Turning Length: 15"
Spindle Bar Capaicty: 1.75"
Spindle Speeds: 40-4000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-6
Sub-Spindle Bar Capacity: 1.62"
Sub-Spindle Speeds: 40-4000 RPM
Sub-Spindle Motor: 5 HP
Sub-Spindle Nose: A2-5
Number of Upper Turret Stations: 12
Number of Lower Turret Stations: 6

S20 Hardinge Master Collet w/ 3-insert jaws (Spindle)
S16 Hardinge Master Collet w/ 3-insert jaws (Sub-Spindle)
Parts Catcher & Conveyor
Chip Conveyor
Machine Manual
***TWO MACHINES AVAILABLE***
