Chuck Size: 15"
Maximum Swing Over Bed / In Gap: 21" / 28"
Swing Over Cross Slide: 11.8"
X-Axis Travel: 11"
Z-Axis Travel: 33"
Spindle Nose / Spindle Bore: D1-6" / 2.25"
Spindle Speed: 2,600 RPM
Spindle Motor 30 minutes/continuous: 12 HP / 10 HP
Turret Type: 8 Position Turret
Rapid Traverse Rates X / Z: 314 IPM / 393 IPM
Cutting Feedrates: 100 IPM
Machine Dimensions: 120" x 83"
Machine Weight: 5,100 lbs
15" 3 Jaw Chuck

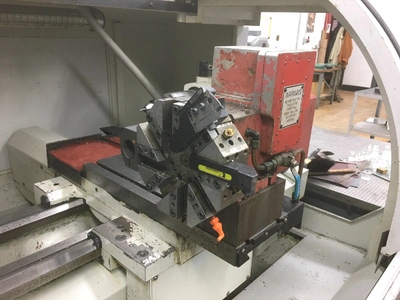

8 Position Turret
Conversational & G Code
RS232 Port Interface
Solid Boxed Ways
Flood Coolant
Chip Guarding
