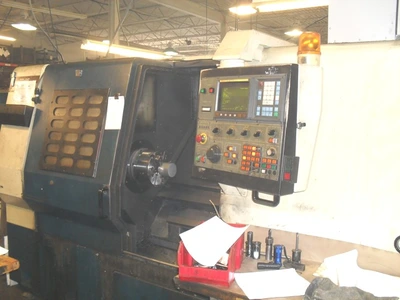

USED 1995 JOHNFORD TC-35
Overview
Specs
Control: Fanuc OT-C

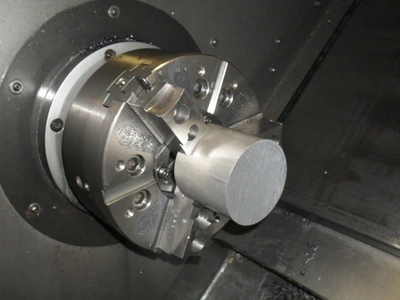

Chuck Size: 10"
Max Diameter Bar Capacity: 2.95"
Max Swing Over Bed / Carriage: 22.8" / 13.7"
Max Turning Diameter (Max / Std): 12.6" / 10.2"
Max Machining Length: 25.6"
Distance Between Centers: 38"
Main Motor: 20 / 15 HP AC
Spindle Speed: 30 - 3,500 RPM

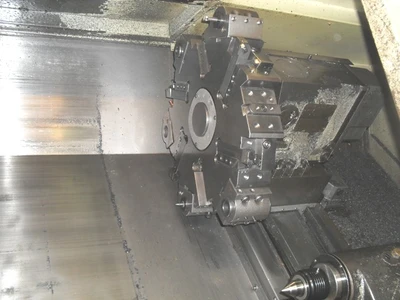

Tools: 12
Spindle Bore: 3.38"
Spindle Nose: A2-8
Spindle Torque: 445 Ft. Lbs.
Rapid Traverse Rates (X&Z): 472 / 590 IPM
X-Axis Travel: 11.4"
Z-Axis Travel: 25.6"
Tailstock Taper: MT #4
Machine Dimensions (L x W x H): 122.64" x 63" x 77.76"
Machine Weight 14,300 lbs.
Equipped With

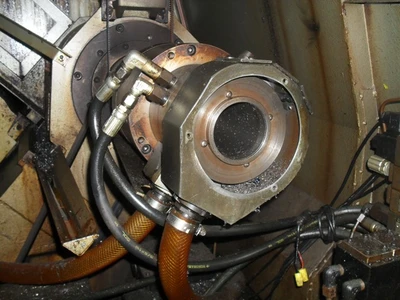

Programmable Tailstock Body & Quill
(15) Boring Bar Holders
(2) Facing Holders
(2) Cut Off Holders
Slant Bed Box Way Construction
Two Gear Range Headstock
