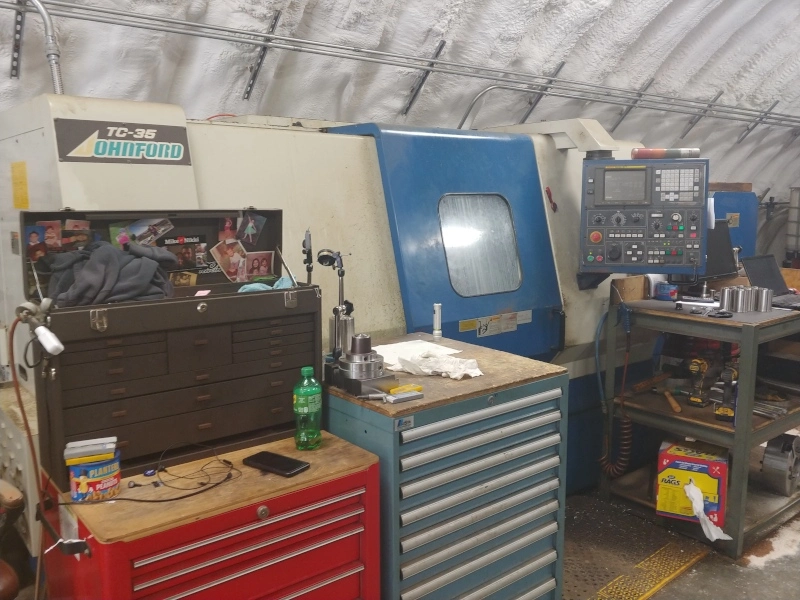

USED 1999 JOHNFORD TC-35

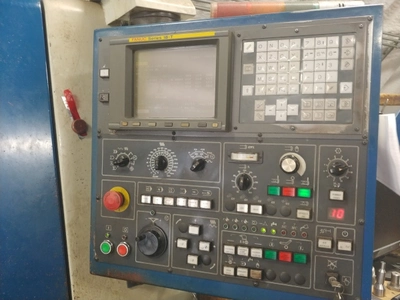

Control: Fanuc 18-T
Maximum Swing / Over Cross Slide: 22.8" / 13.7"
Maximum Machining Diameter: 16.5"
Distance Between Centers: 31.9"
X-Axis Travel: 11.4"
Z-Axis Travel: 25.6"
Spindle Nose / Bore: A2-8 / 3.38"
Spindle Speed: 30 - 3,500 RPM
Spindle Motor: 20 HP / 15 HP
Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates (X/Z): 590 IPM / 798 IPM
Tailstock Quill Diameter / Travel: 3.95" / 3.94"
Tailstock Taper: #4 MT
Machine Dimensions: 164" x 80" x 92"
Machine Weight: 13,640 Lbs

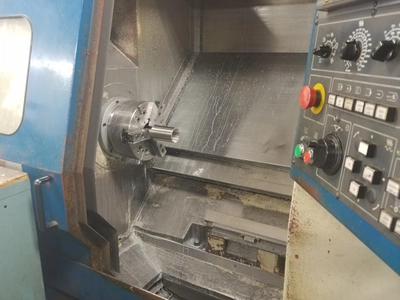

10" Hydraulic Chuck

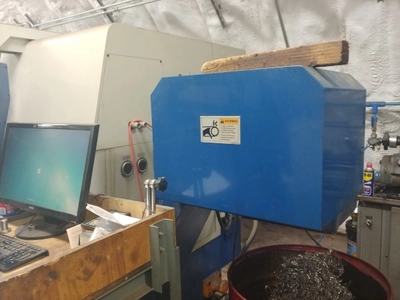

Chip Conveyor
