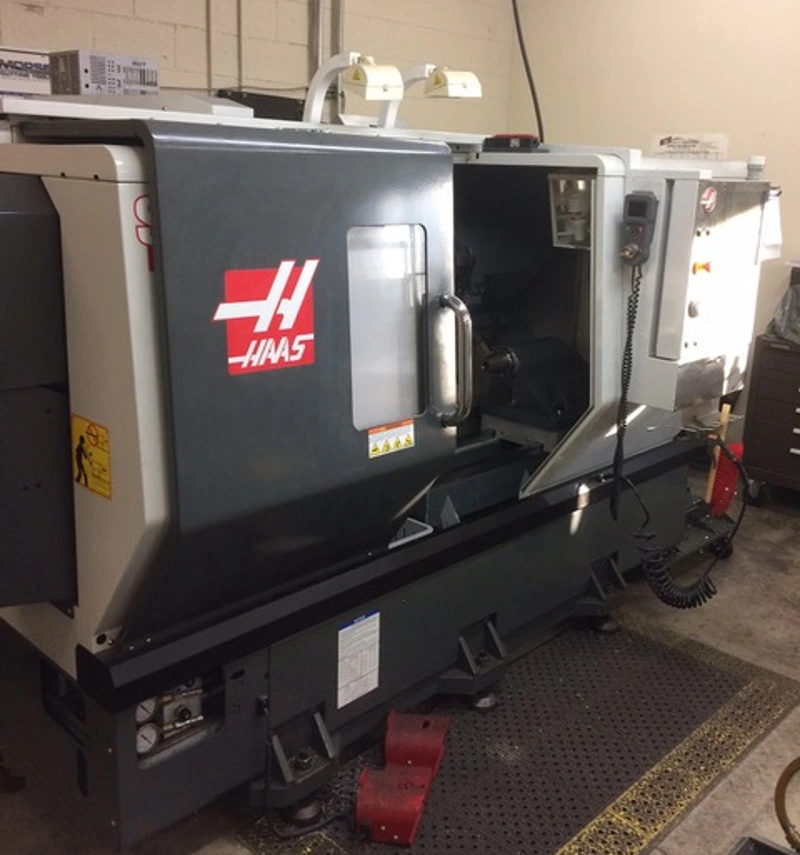

USED 2012 HAAS ST-20

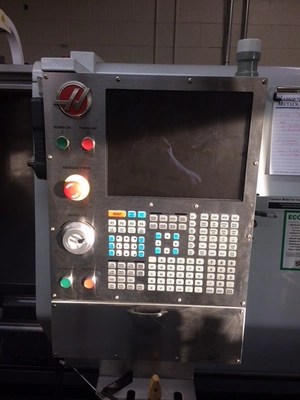

Control: Haas CNC
Swing Over Bed: 23"
Swing Over Cross Slide: 9.5"
Maximum Turning Diameter: 10.3"
Maximum Turning Length: 20"
Maximum Bar Capacity: 3.0"
Spindle Nose: A2-6
Spindle Motor: 20 HP
Spindle Speed: 4,000 RPM

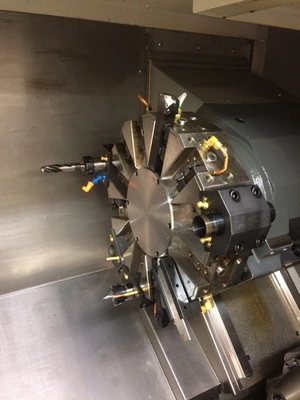

Turret Type: 12 Position
Machine Dimensions: 126.5" x 62" x 72"
Machine Weight: 9,000 lbs

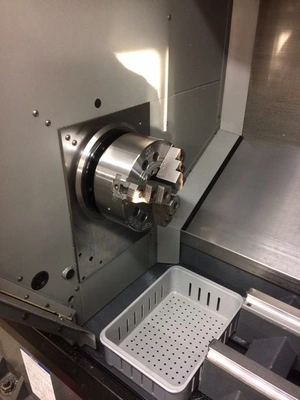

8" Hyd Chuck

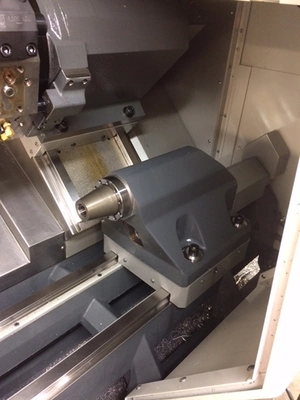

Programmable Tailstock
Intuitive Programming
Spindle Orientation
Remote Jog Handle
High Intensity Lighting
Big Bore Option
Extra Turn Tooling
**Less Than 2000 Cut Hours**
