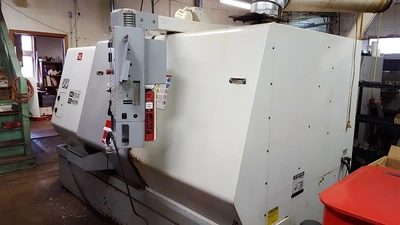

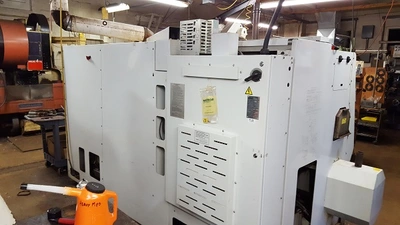

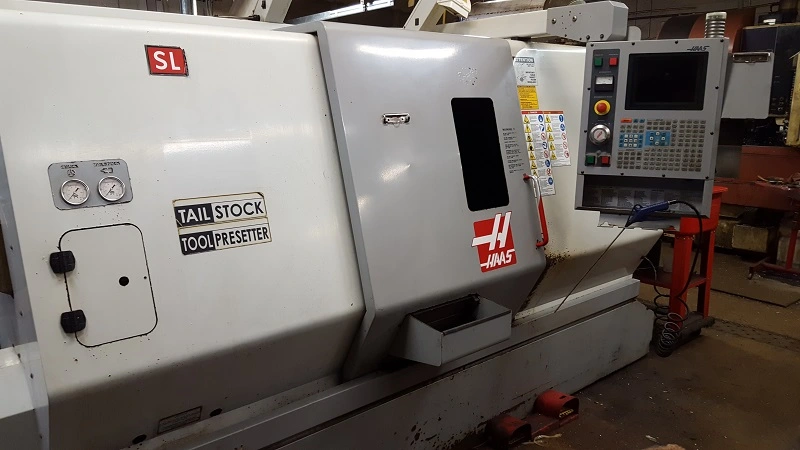

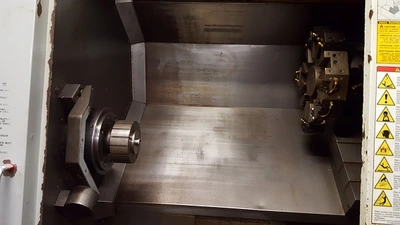

USED 2002 HAAS SL-30T

Overview
Manufacturer:
HAAS
Model:
SL-30T
Year:
2002
Specifications

Control: Haas
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Nose: A2-6
Spindle Bore: 3.18"
Maximum Bar Capacity: 3"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP

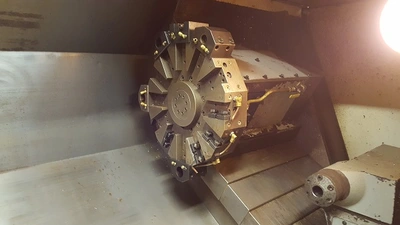

Turret Type: 12 Positions
Tailstock Travel: 33.5"
Machine Dimensions LxWxH: 161"x77"x74"
Machine Weight: 16,000 Lbs

Equipped With

Two speed gear box
programmable tailstock
10" chuck ID
high pressure coolant
Tool pre setter
High intensity lights
parts catcher
interface for a chip auger
3-1/2 disk drive
