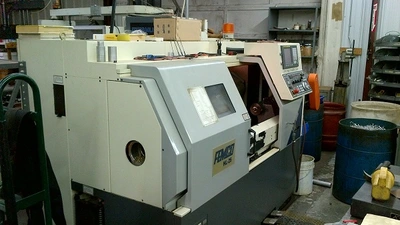

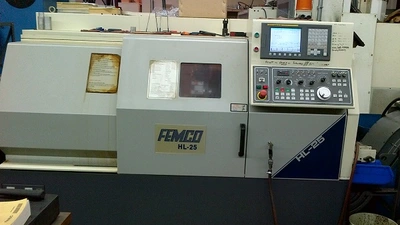

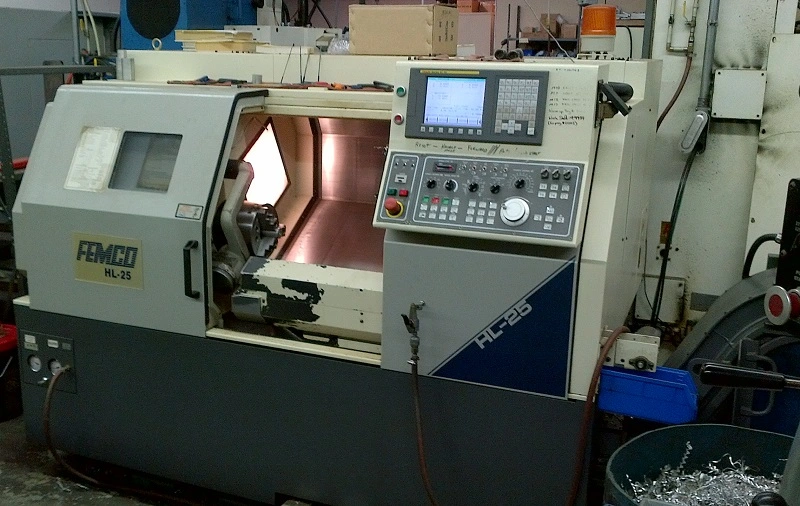

USED 2007 FEMCO HL-25

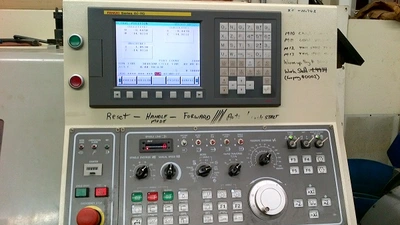

Control: Fanuc oi-TC
Max Swing: 23.62"
Max Cutting Diameter: 9.84"
Max Cutting Length: 23.62"
X Axis Travel: 5"
Z Axis Travel: 24.8"
Rapid Traverse (Both Axis): 787 IPM
Bar Capacity: 2.04"
Spindle Nose: A2-6
Spindle Speed: 4,800 RPM
Spindle Bore: 2.4"
Spindle Motor: 20 HP

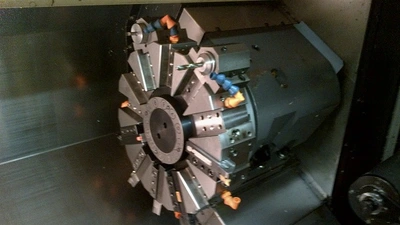

Number of Turret Postions: 12

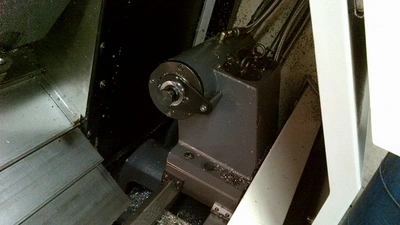

Tailstock Taper: MT #4
Tailstock Travel: 15.75"
Machin Dimensions (W/O Chip Conveyor): 86"L x 55"W x 68"H
Machine Weight: 8,000 LBS

Tool Presetter
Parts Catcher
Parts Conveyor

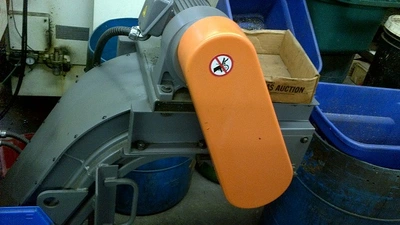

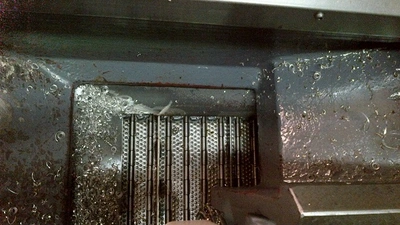

Chip Conveyor

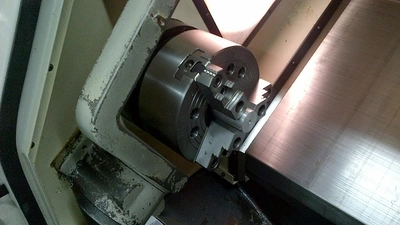

8" Chuck
5C Collet Chuck
